AT-8030 Advanced Industrial Wire Tracer Kit

Designed to protect electricians from the most dangerous level of transient overvoltage spikes up to 8,000 V

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
AT 8030 Advanced Industrial Wire Tracer Kit 06998
AT 8000 3
AT 8000 4
AT 8000 5
AT 8030 2

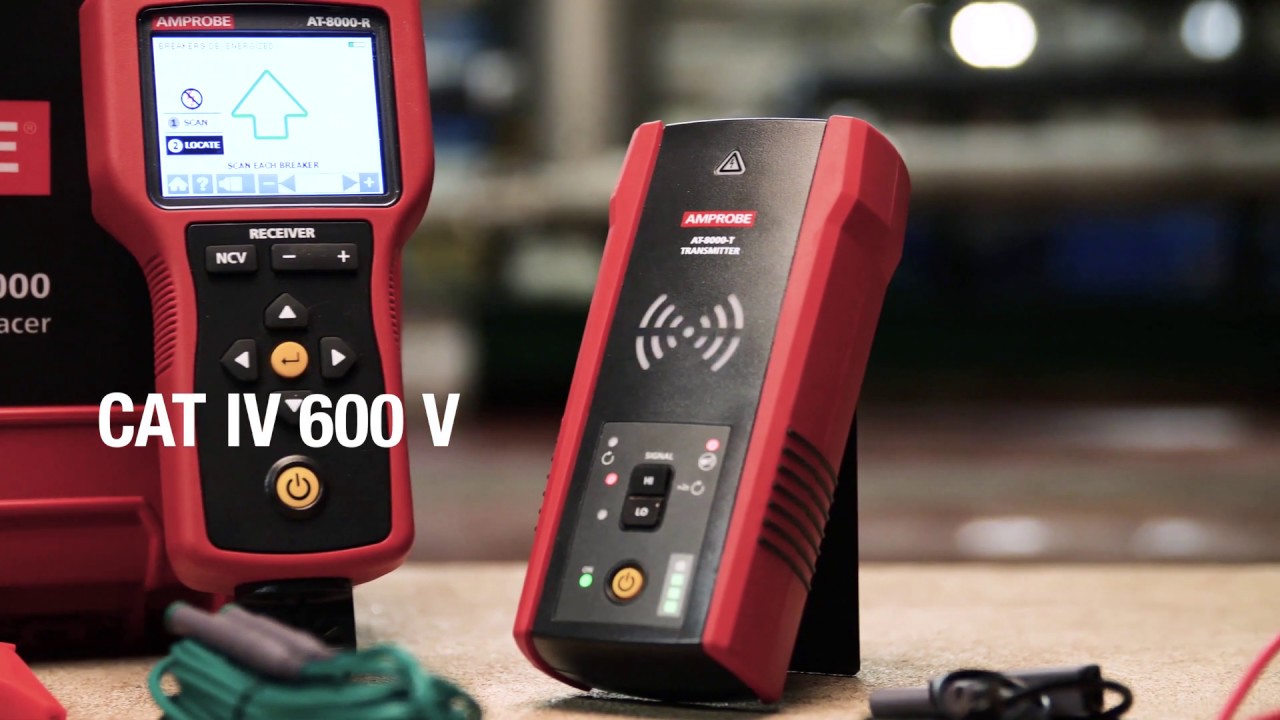

The AT-8000 is the first CAT IV 600 V Advanced Wire Tracer Series designed to protect electricians from the most dangerous level of transient overvoltage spikes up to 8,000 V known to occur in industrial environments. The Receiver is equipped with patented Smart Sensor™ technology, which finds and displays the location and orientation of Energized wires in walls, floors and ceilings on the large color TFT LCD screen.

The Scan and Locate feature clearly identifies the single correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools. Embedded help screens make set-up easy and error free for novice users and experts alike.

Featuring three power modes “high”, “low”, and “loop” and two output frequencies (6 kHz and 33 kHz), the AT-8000-T Transmitter incorporates the best technologies available for optimal wire tracing and breaker identification on both energized and de-energized circuits. The AT-8000-T automatically sets the signal based on detected voltage and prompts the user to set the power level based on the application, delivering consistently accurate results.

The AT-8030 kit includes the CT-400 Signal Clamp for inducing signal into wires without access to bare conductors.

Whats Included:

• AT-8000-R Receiver
• AT-8000-T Transmitter
• TL-8000-INT Test lead & accessory kit*
• CC-8000 Hard carrying case
• 12 x 1.5 V AA batteries (AT-8020)
• 12 x Rechargeable 1.5 V AA batteries (AT-8030)
• 3 x Battery chargers (AT-8030)
• HS-1 Magnetic hanger (AT-8030)
• CT-400 Signal clamp (AT-8030)

* TL-8000-INT test lead and accessory kit includes:

• 2 x 1 m Test leads (red, black)
• 1 x 7 m Test lead (green)
• 2 x Alligator clips (red, black)
• 2 x Outlet blade adapter (red, black)
• 2 x Outlet round adapter (red, black)

• User interface that provides wire direction compass and Receiver alignment capability with conductor through Smart Sensor™ technology
• Safety rated to CAT IV 600 V to work with Energized cables in industrial environments
• Two operating frequencies for Energized and De-Energized circuits: Energized: 6.25 kHz, De-energized: 32.768 kHz
• Non-Contact Voltage Detection
• Ten adjustable Receiver sensitivity levels
• Hi-contrast Receiver LCD
• Includes the CT-400 Signal Clamp for signal induction, HS-1 Magnetic Hanger to optionally hang Transmitter, and rechargeable batteries and battery chargers (AT-8030)
• Attaches to TIC-410A Hot Stick for extended reach (TIC-410A sold separately)

Display SizeAT-8000-R Receiver: LCD 3.5 in (89 mm)
AT-8000-T Transmitter: LEDs
CT-400 Signal Clamp (AT-8030): N/A
Display Dimensions (W x H)AT-8000-R Receiver: 2.76 x 2.07 in (70 x 52 mm)
AT-8000-T Transmitter: N/A
CT-400 Signal Clamp (AT-8030): N/A
Display ResolutionAT-8000-R Receiver: 320 x 240
AT-8000-T Transmitter: N/A
CT-400 Signal Clamp (AT-8030): N/A
Display TypeAT-8000-R Receiver: LCD 3.5 in (89 mm)
AT-8000-T Transmitter: LEDs
CT-400 Signal Clamp (AT-8030): N/A
Display ColourAT-8000-R Receiver: Yes
AT-8000-T Transmitter: Operating mode LEDs - red
Battery status LEDs - green, yellow, red
CT-400 Signal Clamp (AT-8030): N/A
Booting TimeAT-8000-R Receiver: 30 sec
AT-8000-T Transmitter: < 2 sec
CT-400 Signal Clamp (AT-8030): N/A
BacklightAT-8000-R Receiver: Yes
AT-8000-T Transmitter: N/A
CT-400 Signal Clamp (AT-8030): N/A
Operating TemperatureAT-8000-R Receiver: -4 °F to 122 °F (-17.77 °C to 49 °C)
AT-8000-T Transmitter: -4 °F to 122 °F (-20 °C to 50 °C)
CT-400 Signal Clamp (AT-8030): 32 °F to 122 °F (0 °C to 50 °C)
Operating HumidityAT-8000-R Receiver:

45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C)

AT-8000-T Transmitter:

45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C)

CT-400 Signal Clamp (AT-8030):

95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to <122 °F (40 °C to <50 °C)
Storage Temperature & HumidityAT-8000-R Receiver:

-4 °F to 158 °F (-20 °C to 70 °C), <95% RH

AT-8000-T Transmitter:

-4 °F to 158 °F (-20 °C to 70 °C), <95% RH

CT-400 Signal Clamp (AT-8030):

-4 °F to 140 °F (-20 °C to 60 °C), <95% RH
Operating AltitudeAT-8000-R Receiver: 0 to 6561 ft (2000 m)
Transient ProtectionAT-8000-R Receiver: N/A
AT-8000-T Transmitter: 8.00 kV (1.2/50μS surge)
CT-400 Signal Clamp (AT-8030): N/A
Pollution DegreeAT-8000-R Receiver: 2
IP RatingAT-8000-R Receiver: IP 52
AT-8000-T Transmitter: IP 40
Drop TestAT-8000-R Receiver: 3.28 ft (1 m)
Power SupplyAT-8000-R Receiver: 4 x AA (alkaline)
AT-8000-T Transmitter: 8 x AA (alkaline)
CT-400 Signal Clamp (AT-8030): N/A
Power Consumption (Typical)AT-8000-R Receiver: 4xAA battery: 2W
AT-8000-T Transmitter:

Hi mode: 70 mA
Loop mode with Clamp: 90 mA
Consumption without signal transmission: 10 mA

CT-400 Signal Clamp (AT-8030): N/A
Battery LifeAT-8000-R Receiver: Approx. 9 h
AT-8000-T Transmitter:

Hi mode: approx. 25 h
Loop mode: approx. 18 h

CT-400 Signal Clamp (AT-8030): N/A
Low Battery IndicationAT-8000-R Receiver: Yes
CT-400 Signal Clamp (AT-8030): N/A
FuseAT-8000-R Receiver: N/A
AT-8000-T Transmitter: 1.6 A, 700 V, fast-acting,
Ø 6x32mm
CT-400 Signal Clamp (AT-8030): N/A
Maximum Conductor SizeAT-8000-R Receiver: N/A
AT-8000-T Transmitter: N/A
CT-400 Signal Clamp (AT-8030): 1.26 in (32 mm)
Dimensions (L x W x H)AT-8000-R Receiver:

Approx. 10.92 x 4.43 x 2.55 in
(27.75 x 11.25 x 6.5 cm)

AT-8000-T Transmitter:

Approx. 7.2 x 3.66 x 1.97 in
(18.3 x 9.3 x 5 cm)

CT-400 Signal Clamp (AT-8030):

Approx. 5.9 x 2.75 x 1.18 in
(15 x 7 x 3 cm)
WeightAT-8000-R Receiver: Approx. 1.20 lb (0.544 kg)
AT-8000-T Transmitter: Approx. 1.25 lb (0.57 kg)
CT-400 Signal Clamp (AT-8030): Approx. 0.25 lb (0.114 kg)



Features



AT-8000-R ReceiverAT-8000-T TransmitterCT-400 Signal Clamp (not included)

Display size



LCD 3.5 in (89 mm)LEDsN/A

Display dimensions (W x H)



2.76 x 2.07 in (70 x 52 mm)N/AN/A

Display Resolution



320 x 240N/AN/A
Display typeColor TFT LCDLEDsN/A
Display colorYesOperating mode LEDs: red
Battery status LEDs: green, yellow, red		N/A
Booting time30 sec< 2 secN/A
BacklightYesN/AN/A
Operating temperature-4 °F to 122 °F (-17.77 °C to 49 °C)-4 °F to 122 °F (-20 °C to 50 °C)32 °F to 122 °F (0 °C to 50 °C)
Operating humidity45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C)		45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C)		95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to <122 °F (40 °C to <50 °C)

Storage temperature and humidity



-4 °F to 158 °F (-20 °C to 70 °C), <95% RH-4 °F to 158 °F (-20 °C to 70 °C), <95% RH-4 °F to 140 °F (-20 °C to 60 °C), <95% RH

Operating altitude



0 to 6561 ft (2000 m)

Transient protection



N/A8.00 kV (1.2/50μS surge)N/A

Pollution degree



2

IP rating



IP 52IP 40

Drop test



3.28 ft (1 m)
Power supply4 x AA (alkaline)8 x AA (alkaline)N/A
Power consumption (typical)4xAA battery: 2WHi mode: 70 mA
Loop mode with Clamp: 90 mA
Consumption without signal transmission: 10 mA		N/A

Battery life



Approx. 9 hHi mode: approx. 25 h
Loop mode: approx. 18 h		N/A

Low battery indication



YesN/A

Fuse



N/A1.6 A, 700 V, fast-acting,
Ø 6x32mm		N/A

Maximum conductor size



N/AN/A1.26 in (32 mm)

Dimensions (L x W x H)



Approx. 10.92 x 4.43 x 2.55 in
(27.75 x 11.25 x 6.5 cm)		Approx. 7.2 x 3.66 x 1.97 in
(18.3 x 9.3 x 5 cm)		Approx. 5.9 x 2.75 x 1.18 in
(15 x 7 x 3 cm)

Weight



Approx. 1.20 lb (0.544 kg)Approx. 1.25 lb (0.57 kg)Approx. 0.25 lb (0.114 kg)
