Starting at $2,925.23CAD

BDL Button Data Logger

Name: BDL Button Data Logger
SKU: placeholder-bdl-button-data-logger
Price: 2925.23 CAD
Availability: InStock

Self-Powered, Compact Size, USB Interface

Starting at

$2,925.23CAD

Have questions? We're here to help!

Call

Configure

Used in

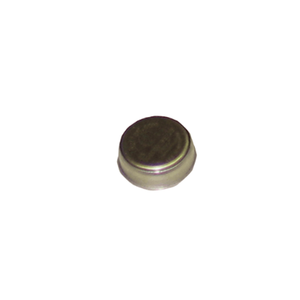

The Series BDL Button Data Logger records temperature and humidity in applications where size and cost effectiveness are vital. Housed in a compact stainless steel case, the BDL is durable in hostile environments, while also being able to be inserted in small items and packages. The Series BDL-K logger kit includes 2 buttons, 2 magnets, an interface cable, and a plastic button holder.

• Compact to fit in small areas and durable to work in hostile environments

• Self-powered unit gives no need for external power supply

• Magnetic mounting for quicker installation

Weight	0.14 oz (4 g).
Housing Material	305 SS.
Interface	USB port (cable included with kits).
Alarms	Programmable high/low.
Battery Life	BDL-1: 10 years (approx); BDL-2: 5 years (approx).
Power Requirements	3 V lithium metal battery, internal, non-replaceable.
Computer Requirements	Windows ® 98, Windows ® 2000, Windows ® ME, Windows NT® , Windows ® XP, and Windows Vista ® operating system with 16 MB RAM, one free USB port.
Sampling Rate	BDL-1: Selectable from 1 to 255 min.; BDL-2: Selectable from 1 s to 24 hrs.
Sampling Method	Stop on memory full or continuous recording.
Resolution	BDL-1: 8 bit; BDL-2: 8 or 11 bit.
Accuracy	BDL-1: ±1.5°F (±1°C) from -22 to 158°F (-30 to 70°C); BDL-2: ±0.9°F (±0.5°C) from 14 to 158°F (-10 to 70°C), ±5% RH.
Memory Size	BDL-1: 2048 readings; BDL-2: 4096 temperature and 4096 humidity readings (low resolution), 2048 temperature and 2048 humidity readings (high resolution).
Range	BDL-1: -40 to 185°F (-40 to 85°C); BDL-2: -4 to 185°F (-20 to 85°C), 0 to 100% RH.
