Dwyer

CDTV Carbon Dioxide/Volatile Organic Compound TransmitterCDTV

Simultaneously outputs both CO2 and VOC with a single beam dual wavelength NDIR CO2 sensor

Starting at
$731.85CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
CDTV Carbon Dioxide Volatile Organic Compound Transmitter CDTV 05250
CDTV Carbon Dioxide Volatile Organic Compound Transmitter CDTV 799ae
CDTV Carbon Dioxide Volatile Organic Compound Transmitter CDTV c465f

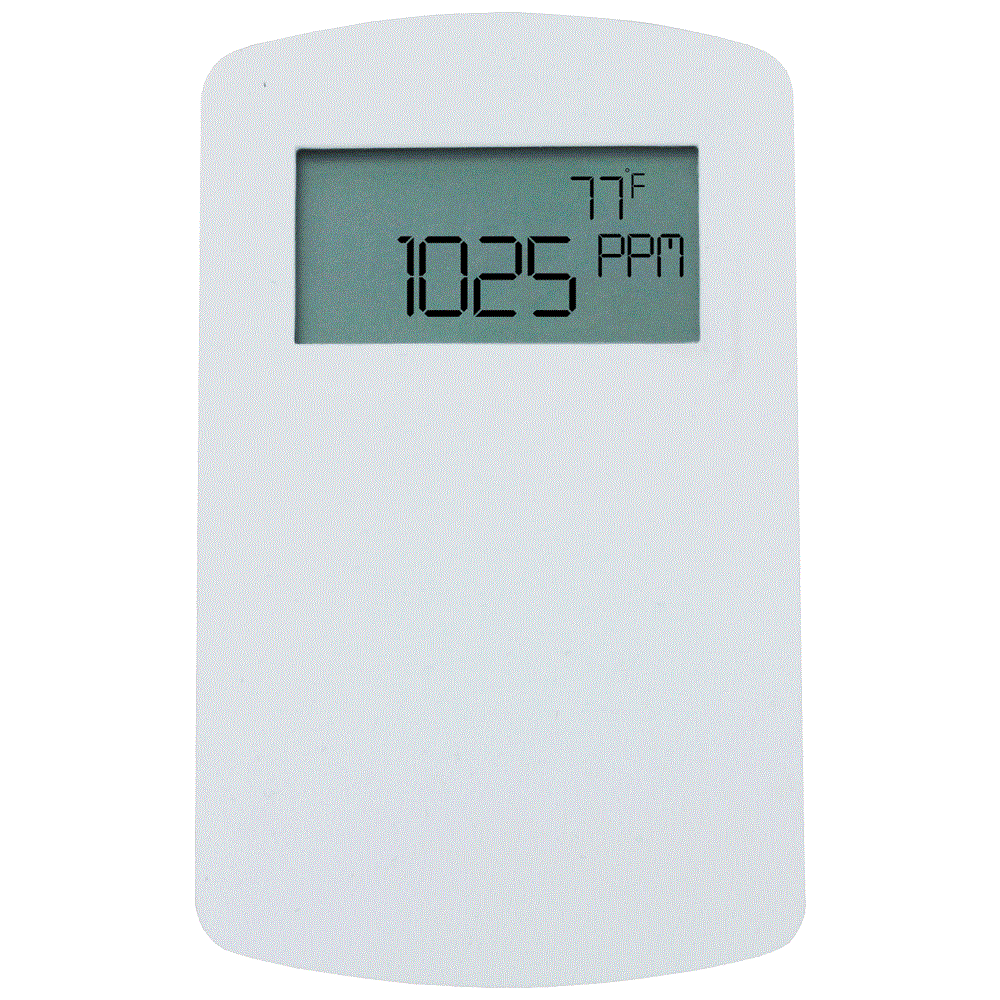

CDT Wall Mount

The Series CDTV Carbon Dioxide/Volatile Organic Compound (VOC) Transmitter reduces energy cost in buildings by lowering the amount of conditioned air based on the occupancy of the space. By sensing both CO2 and VOC, the transmitter can detect fumes that may need to be exhausted during lower occupancy periods.

• Combination VOC and CO2 outputs reduce labor and material costs
• Single beam dual wavelength NDIR CO2 sensor allows for use in spaces that may be occupied 24 hours a day
• VOC output is correlated to be equivalent to CO2 measurements
• Ventilate using ASHRE’s occupancy-based VRP Algorithm

RangeCO2: 0 ppm - 2000 or 0 ppm - 5000 ppm (depending on model);
VOC: 0 ppm - 2000 ppm CO2 equivalent
AccuracyCO2: ± 40 ppm ± 3% of reading
Temperature Dependence± 8 ppm/°C at 1100 ppm
Non-LinearityCO2: 16 ppm
Pressure DependenceCO2: 0.13% of reading per mm Hg
Response TimeCO2: 2 min for 99% step change;
VOC: 5 min
Temperature Limits32°F - 122°F (0°C - 50°C)
Air Velocity Range0 FPM - 4000 FPM (20.32 m/s)
Power Requirements16 VDC - 35 VDC (19 VAC - 28 VAC.)
Power ConsumptionAverage: 2 W;
Peak: 3.75 W
SensorCO2: Single-beam, dual-wavelength NDIR;
VOC: MEMS metal oxide semiconductor
OutputCurrent: 0 mA - 20 mA, 4 mA - 20 mA, 0 mA - 10 mA, or 2 mA - 10 mA (depending on selection jumper, max 500 Ω);
Voltage: 0 VDC - 10 VDC, 2 VDC - 10 VDC, 0 VDC - 5 VDC, or 1 VDC - 5 VDC (depending on selection jumper, min 500 Ω);
Relay: SPST NO 2A @ 30 VDC
Weight5.6 oz (158.8 g)
Enclosure RatingDuct mount: NEMA 4X (IP66) for housing only;
Wall mount: IP20
Agency ApprovalsCE

• HVAC applications in hospitals, schools, and commercial buildings
• Demand control ventilation
• Odor control
• Waiting rooms or other spaces that may be occupied 24 hours a day
