Supported Applications
The Omega CL542-PLUS is an automated thermocouple calibrator designed for checking, calibrating, and measuring thermocouple sensors. The device supports multiple thermocouple types including J, T, E, K, R, S, B, N, G, C, D, L, U, and Platinel II.
Key functional capabilities include:
• Simulating thermocouple signals in °C, °F, or millivolts
• Reading thermocouple sensors directly via the miniature connector
• Providing automatic output stepping for quick calibration sequences
• Operating with a backlit display suitable for dark environments
Operating Conditions & Performance
The CL542-PLUS provides measurement resolution of 0.1° increments in °C or °F and 0.001 mV increments. The unit is powered by four (4) 'AA' 1.5V batteries, with alkaline batteries recommended for maximum battery life and performance.
Operational indicators include a low-battery warning ('BAT') on the display when approximately one to four hours of typical operation remain before automatic shutdown. An OVERLOAD indicator lights if excessive voltage or current is detected. The device features an OMEGA switch for preset temperature outputs and a push-button knob for fine adjustment.
Configuration Options
The series offers configurable settings accessible via the configuration menu, including units (°C), thermocouple type selection (e.g., K), cold junction compensation status (ON/OFF), backlight control, step count, step time, auto-off function, and display options for millivolts or cold junction temperature.
Physical interface features include:
• A female miniature thermocouple connector mounted in the top end of the housing
• Two banana jacks on the top end specifically for millivolt signals only (not temperature compensated)
Key Product Differences
The CL542-PLUS features a rugged, low-profile design with a rubber boot and switch housing. Removing the batteries resets all stored configuration options to factory defaults.

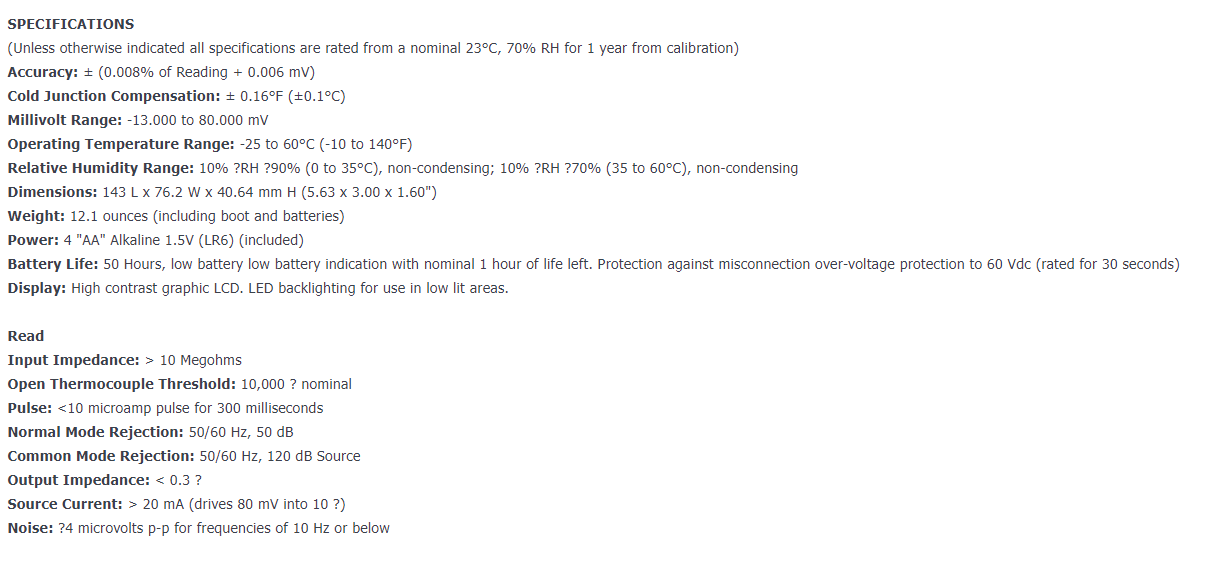

| Accuracy | ± 0.008 % |
| Accuracy Detail | ± (0.008% of Reading + 0.006 mV) |
| Additional Features 1 | Read & Source Signals |
| Battery Life | 50 hr, low battery warning with less than 1 hr operation left |
| Cold Junction Compensation | ± 0.16°F |
| Display Type | LCD |
| Display Type Note | High contrast graphic liquid crystal display, LED backlighting for use in low lit areas |
| Height | 40.64 mm |
| Length | 143 mm |
| Operating Temperature, Min | -25 °C |
| Relative Humidity, Max | 0.9 |
| Relative Humidity, Min | 10% |
| Relative Humidity Note | 10% ≤RH ≤90% (0 to 35°C), non-condensing; 10% ≤RH ≤70% (35 to 60°C), non-condensing |
| Series ID | CL542-PLUS-series |
| Supply Voltage | 1.5 Vdc |
| Thermocouple Type | J, K, T, E, N, R, S, U, B, G, C, D, L, P |
| Voltage Read | Input Impedance: > 10 Megohms Open Thermocouple Threshold: 10,000 Ω nominal Pulse: <10 microamp pulse for 300 milliseconds Normal Mode Rejection: 50/60 Hz, 50 dB Common Mode Rejection: 50/60 Hz, 120 dB |
| Voltage Source | Output Impedance: < 0.3 Ω Source Current: > 20 mA (drives 80 mV into 10 Ω) Noise: ≤4 microvolts p-p for frequencies of 10 Hz or below |
| Weight | 12.1 oz |
| Weight Note | 12.1 ounces (including boot and batteries) |
| Width | 76.2 mm |
