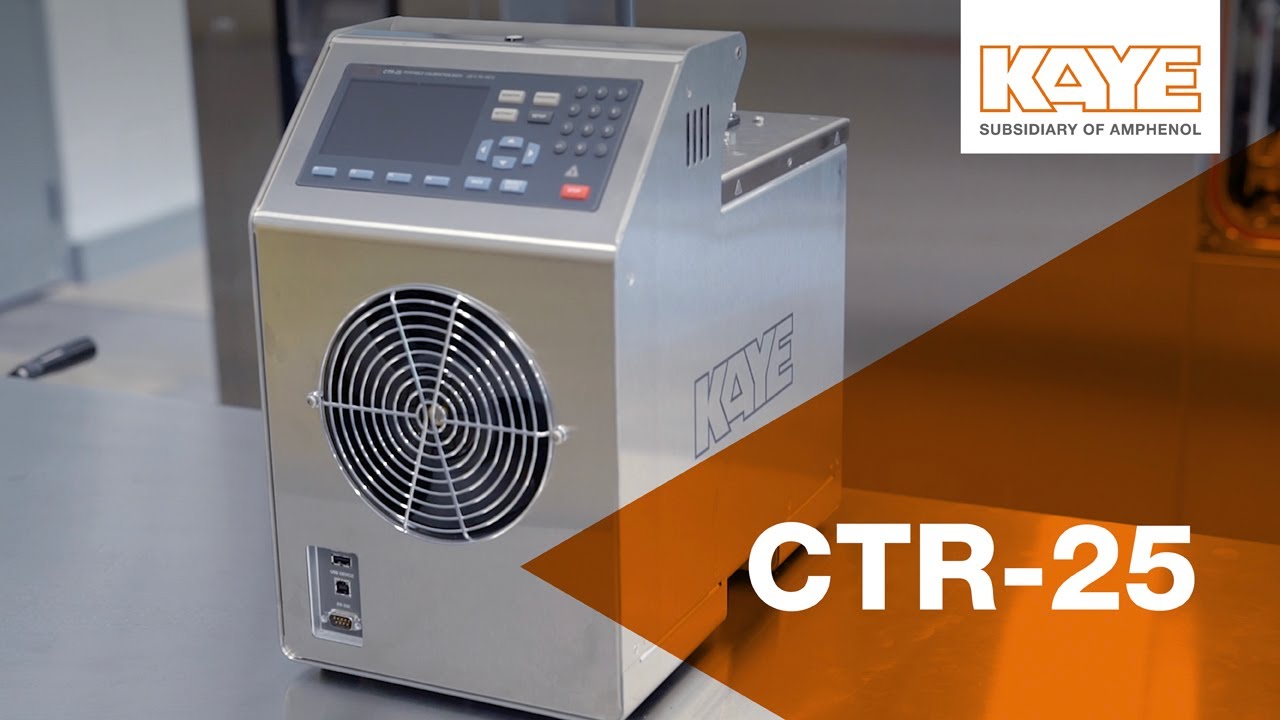

CTR-25 Portable Liquid Calibration Bath

Ideally suited for verifications of up to 10 Kaye ValProbe or ValProbe RT Loggers, & various sized process sensors

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
CTR 25 Portable Liquid Calibration Bath 07098
CTR 25 Portable Liquid Calibration Bath 9a460
CTR 25 Portable Liquid Calibration Bath 9a83e
CTR 25 Portable Liquid Calibration Bath cc6d1

The Kaye CTR-25 is the latest addition to our complete line of advanced calibration dry blocks and baths designed to address the specific needs of thermal Validation. The CTR-25 was designed to address portability, capacity, speed and accuracy requirements not normally found in competitive liquid baths.

The CTR-25 is ideally suited for verifications of up to 10 Kaye ValProbe or ValProbe RT Loggers as well as various sized process sensors. Onboard firmware enables automatic real-time verification of RT (real-time ) ValProbe Loggers or manual verifications of standard ValProbe loggers. Having a portable, rugged, accurate liquid bath allows customer to easily perform periodic verifications of their Loggers which greatly minimizes risk associated with waiting for yearly factory calibrations.

• Wide temperature range from -25°C to 140°C
• Excellent stability of 0.01°C / uniformity of up to 0.02°C
• Fast heating and cooling times
• Verification of up to 10 rigid ValProbe loggers and any kind of Data Loggers
• Firmware supports automatic/manual verifications of ValProbe Loggers
• Comes with a special designed fixture to easily hold 10 loggers and one IRTD
• Compact, portable design for easy carrying or shipping (20kg/44lbs)
• Compressor free unit – operates with modern Peltier Technology
• Stainless steel casing withstands harsh sterilizing chemicals
• Universal Power Supply 110/ 240 VAC - 50/60 Hz
• Large front panel display with intuitive controls
• Large 2.5l tank with up to 6” (15.24cm) depth can accommodate wide range of sensor types
Range (at 25 °C ambient temperature)-25 °C to 140 °C (closed cover)
Accuracy (maximum permissible error)0.1 °C
Display resolution0.01 °
Stability0.01 °C
Typical uniformity0.02 °C
Repeatability0.04 °C
Typical heating time-25 °C to 25 °C: 35 minutes
25 °C to 140 °C: 55 minutes
Typical cooling time140 °C to 25 °C: 45 minutes
25 °C to –25 °C: 75 minutes
Typical settling time10 minutes
General Specifications
SizeHeight: 382 mm (15 in)
Width: 242 mm (9.5 in)
Depth: 400 mm (15.7 in)
Weight20 kg (44 lb)
Fluid volume2.5 liters (0.66 gallons)
Fluid working area75 mm x 75 mm (3 in x 3 in)
Maximum fluid depth154 mm (6.1 in)
Factory calibrationNVLAP accredited
calibration certificate included
Remote InterfaceRS-232 port. / USB 2.0 device port /
USB 2.0 host port
Supply Voltage115V - 50 or 60 Hz / 230V - 50 or 60Hz
Power ConsumptionMax 1150 W
The CTR-25’s broad temperature range allows it to be used for calibration or verification of validation or process sensors for a wide variety of applications:
• steam-in-place process (122 °C to 140 °C)
• autoclave sterilization (121 °C to 135 °C)
• pharmaceutical bioreactors (-10 °C to 100 °C)
• storage freezers (-25 °C)
