D2200 Current Input Modules

Modules provide an isolated 15-bit measurement ADC & discrete digital I/O bits for controlling solid state relays or sensing contact closures

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Also found in
D2200 Current Input Modules 00643

The  D2200 ADC module converts analog DC current input signals to digital information, linearizes and scales the data in customer programmed values, and communicates the values to a host computer or PLC. The data values are transmitted in ASCII to a host computer via RS232 or RS485.

The D2200 series modules can also be mounted on a DIN-Rail using the MK-1 mounting kit.

Ranges+/- 1 mA
+/- 10 mA
+/- 100 mA
+/- 1 A
4-20 mA
Accuracy+/- 0.02% of F.S., 0.04% of FS (4-20 mA)
Resolution0.01% of F.S. (4-digits) 0.04% of F.S. (4-20 mA)
Common Mode Rejection100 db at 50/60 Hz
Zero Drift+/- 1 count max (autozero)
Span tempco+/- 50 ppm/°C max, (+/- 1 A = +/- 80 ppm/°C)
Voltage Drop+/- 0.1 V max

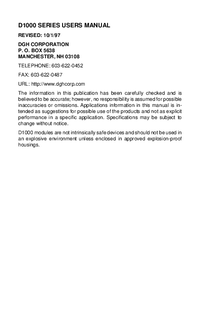

  • Thumbnail of document Manual - D2200 Current Input Modules
