DP400TP High Speed Temperature & Process Meter, NFC Enabled

High Speed Temperature and Process Meter, NFC Enabled

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in

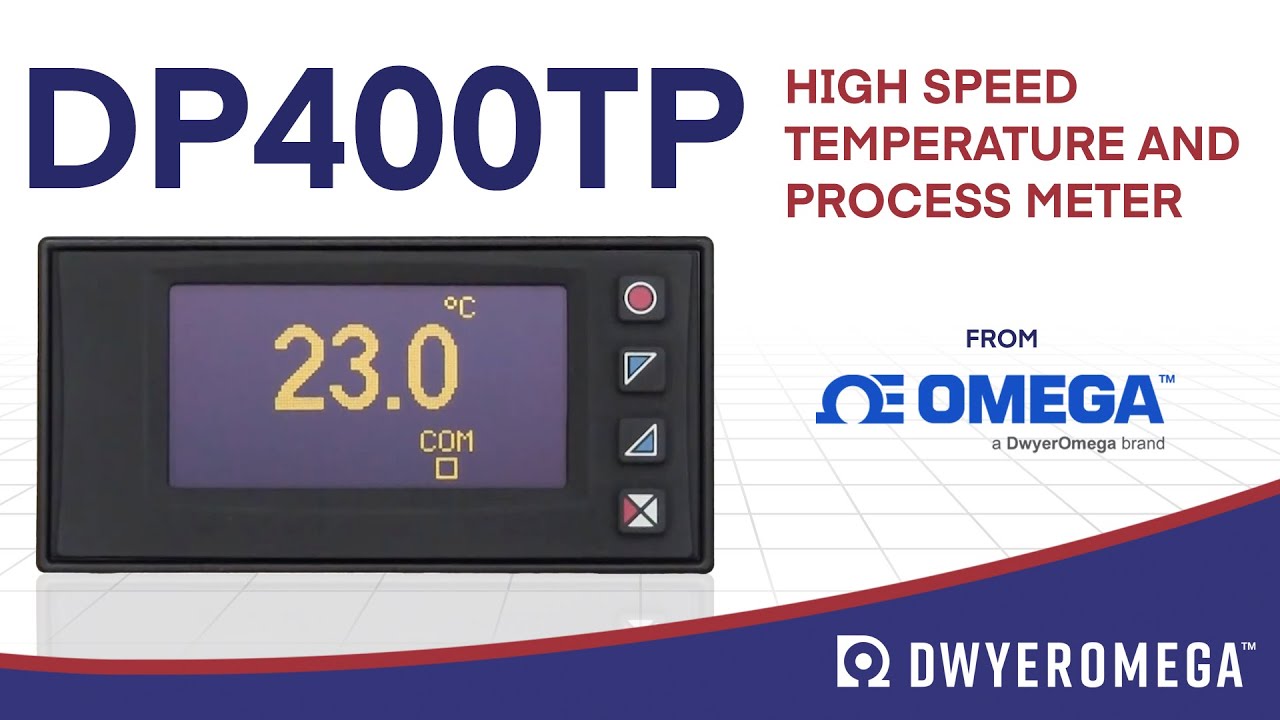

DP400 TP High Speed Temperature Process Meter NFC Enabled 13631

 The new DP400TP High Speed Meter stands out in its market segment for the bright OLED display and the innovative multilingual interface as well for RFID/NFC connectivity. The analog input can be configured by parameter for a wide range of temperature sensors and process signals in mA and Volts. The monochromatic OLED graphic display supports graphs showing process trend with programmable sampling times and bar graphs with alarm thresholds typically used for level, flow and dosage visualization.



DP400TP Meter Overview
The linearization of input can be customized up to 16 points as required on tanks with an irregular profile. Mathematical functions linked to process value are also available, such as Totalizer and Sum. Connectivity is guaranteed by RS485 with Modbus RTU/Slave protocol.

For maximum flexibility of use, it is also possible to choose between the horizontal or vertical installation of the same device.

The distinctive feature of the entire DP400 series is the innovative multilingual interface, with text menus allowing intuitive and quick navigation of parameters and display pages. It is possible to choose among different languages and the comprehensive menu considerably reduces the need to consult the technical manual for the initial set-up.

A dedicated programming tool is the Omega Branded Free Download Google Play App - "Direct Link" relying on RFID/NFC connectivity and allowing straightforward programming without wiring by Android devices. You can also find the latest version of App from our software link.

• UL Certified
• Visualization & Multilingual Interface
• High Speed & Sampling Rate Up to 242 Hz
• Alarm and Signal Re-transmission Functions
Box96x48 (Front panel) x 48 mm (1/8 Din)
Power Supply24 ~ 230VAC/DC ±10% 50/60 Hz (galvanic isolation 2500V)
Consumption6 VA
DisplayOLED (Monchromatic yellow)
Operating ConditionsTemperature 0 ~ 45 °C, humidity 35 ~ 95 RH% (non condensing)
MaterialBox: Polycarbonate V0
WeightApprox. 165 g
SealingFront panel: IP54 (IP65 with gasket) - Box and Terminal blocks:IP20
Quick Set-up optionsSoftware LABSOFTVIEW and/or Memorycard
WiringRemovable terminal blocks, spring lock
Inputs
1 AnalogueRes.16 bit, Selecting for T/C type K, S, R, J, T, E, N, B (automatic compensation of the cold junction 0 ~ 50 °C, ± 0,2% F.S. ± 1 Digit F.S.), thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K (ß 3435K), process signals 0-10 V(54000 points), 0/4-20mA(40000 points), 0-60 mV (16000 points), Potentiometer 6 KO, 150 KO (50000 points) Customizable linear input (max 16 steps)
2 DigitalPNP inputs programmable for Run / Hold / Tare-Zero / Alarms reset/ Peaks reset/ Totalizer reset / Activate-Reset Sum / Parameters-Setpoint Lock
Sampling RateFrequency Range from 4.12 Hz to 242 Hz
Outputs
2 Relays2A - 250VAC (resistive charge)
2 Analogue1 output 0 ~ 10V (60000 points) - 1 output 0/4 ~ 20mA (60000 points)
1 Auxiliary24 VDC - 30mA for external sensors supply (loop-powered)
Serial CommunicationRS485 Modbus RTU - Slave (1200 ~ 115200 Baud) galvanically isolated from Power supply/Inputs/Outputs
Software features
Alarms RegulationON - OFF with hysteresis
Alarm ModeAbsolute / Threshold, Band with instantaneous/delayed/retentive/by digital input activation, Sensor failure / Activation by serial line
Sum FunctionSum different process measurements over time By digital input or by keyboard
Totalizer FunctionVisualization of instant process value and total value since last reset
Trend VisualizationTrend visualization with time basis 1 to 3600s
Analogue RetransmissionProcess values / Setpoints
Digital Transmission via RS485Process values / Setpoint / Parameters
Latch-on FunctionSemi-automatic setting of limits/ calibration values for analogue input
Text MenusEnglish/Italian/German/French/Spanish
Measure Unit VisualizationSelection of Different Measuring Units
