EA2-TX Dew-Point Transmitter for Compressed Air

Moisture meter measuring dew point & moisture content, available w/ a range of process connections & electrical connectors

Have questions? We're here to help!

Call

Used in

EA2 TX Dew Point Transmitter for Compressed Air 05536

The Easidew sensor is a moisture meter that measures both dew point and moisture content. It is simple to install as it is available with a wide range of process connections and electrical connectors. All Easidew dew-point transmitters are available with a service exchange program which reduces the cost and time spent on maintenance.

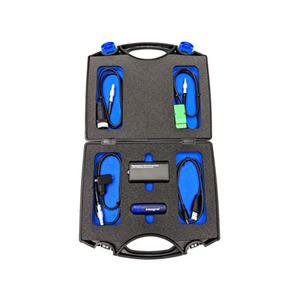

Reconfiguration of the transmitters is simple with the self-contained Easidew and Pura communications kit.

Michell’s Ceramic Metal-Oxide Moisture Sensor-based Hygrometers are calibrated to international standards and are delivered with a traceable calibration certificate...

• Measurement ranges -110 up to +20°Cdp

• Dew point or ppmV moisture content output

• Accuracy ±2 °Cdp

• Traceable calibration certificate

• Easidew I.S. IECEx, cQPSus, ATEX and UKCA approvals

• Low cost of ownership and easy maintenance with sensor exchange program

• 316 Stainless steel sensor and sample blocks

• 5/8” UNF, 3/4” UNF, G 1/2” process connections

• MiniDIN 43650, M12 electrical connectors

• Oxygen Service cleaned

Performance Specifications
Measurement Range	–110 to +20°C dew point; –100 to +20°C dew point; non standard ranges available on request
Accuracy	±2°C dew point*
Response Time	5 mins to T95 (dry to wet)
Repeatability	0.5°C dew point
Calibration	Traceable 13 point calibration certificate
Electrical Specifications
Output Signal	4–20 mA (2-wire connection, current source); User configurable over range
Output	Dew point or moisture content
Analog Output Scaled Range	Dew point: –110 up to +20°C; Moisture content in gas: 0– up to 3000 ppmV;
Supply Voltage	12 to 28 V DC
Load Resistance	Max 250 Ω @ 14 V (500 Ω @ 24 V)
Current Consumption	23 mA max, depending on output signal
CE Conformity	Approved
Operating Specifications
Operating Temperature	-40 to +60°C
Compensated Temperature Range	-20 to +50°C
Storage Temperature	-40 to +60°C
Operating Pressure	45 MPa (450 barg) maximum

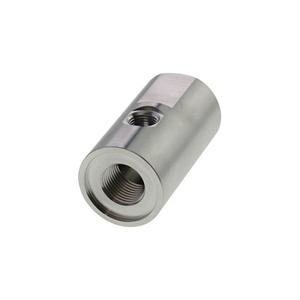

Flow Rate	1 to 5 Nl/min mounted in standard sampling block; 0 to 10 m/sec direct insertion
Mechanical Specifications
Ingress Protection	IP66 in accordance with standard BS EN 60529:1992; NEMA 4 protection in accordance with standard NEMA 250–2003
Intrinsically Safe Area Certificates	ATEX: II 1 G Ex ia IIC T4 Ga (-20 to +70 °C) IECEx: EX ia IIC T4 Ga (-20 to +70 °C) TC TR@ 0Ex ia IICT4 Ga (-20 to +70 °C) FM: Class I, Division 1, Groups A B C D, T4 CCSAUS: Class I, Division 1, Groups A B C D, T4
Oxygen Service	Optional: cleaned for enriched oxygen
Housing Material	316 stainless steel
Dimensions	MiniDIN 43650 form C L=132mm x ø45mm (with connector cable) Easidew M12: M12 5 pin L = 155mm x ø45mm (with connector cable)

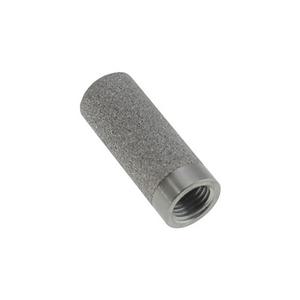

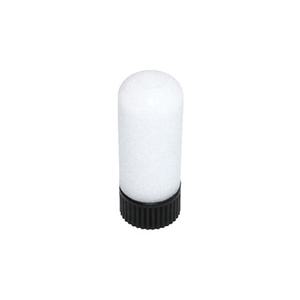

Filter (Sensor Protection)	Standard: HDPE <10μm Optional: 316 stainless steel sintered guard <80μm

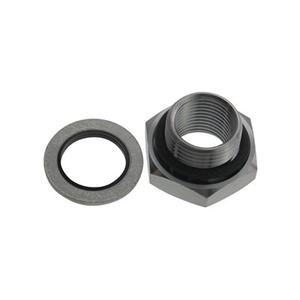

Process Connection	5/8” -18 UNF, 3/4” - 16 UNF, G1/2” BSP
Weight	150g
Electrical Connections	MiniDIN 43650 form C
Mating Electrical Connectors	Mating connector supplied as standard
Approved Galvanic Isolators	KFD2-CR-EX1.20200 KFD2-CR-EX1.30200 KFD0-CS-EX1.50P KFD0-CS-EX2.50P KFD2-STC4-EX1.H MTL5041 MTL5040
Diagnostic Conditions (Factory Programmed)	Conditions Sensor fault Under-range dew point Over-range dew point Output 23 mA 4 mA 20 mA
