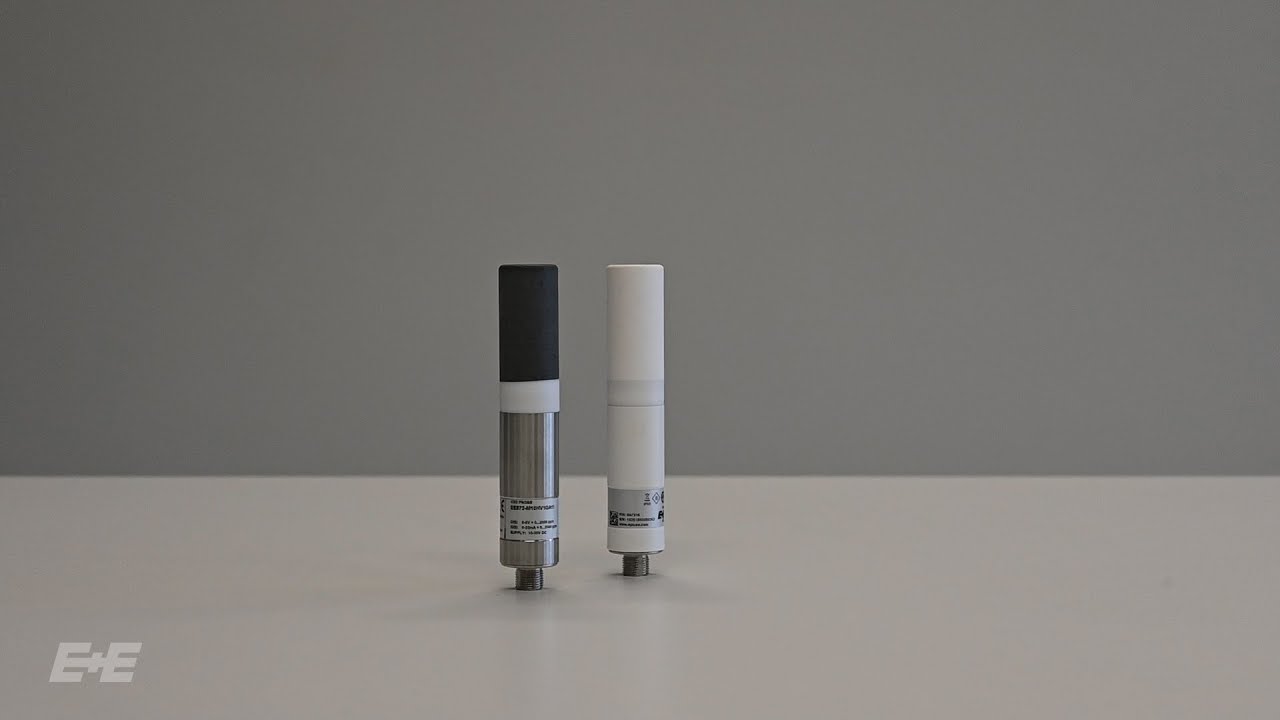

EE872 Modular Probe

Name: EE872 Modular Probe
SKU: placeholder-ee872-modular-probe
Price: 1895.78 CAD
Availability: InStock

4 in 1 probe for CO2, humidity, temperature and pressure

Starting at

$1,895.78CAD

Have questions? We're here to help!

Call

Configure

Used in

Also found in

EE872 incorporates the E+E dual wavelength NDIR CO₂ sensor, which automatically compensates for ageing effects, is highly insensitive to pollution and ensures an outstanding long term stability. The multi-point CO₂ and temperature adjustment leads to an outstanding measurement accuracy. The RH sensing element with E+E proprietary coating is suitable even for aggressive and corrosive environment.

Beside CO₂, the EE872 measures also relative humidity (RH), temperature and ambient pressure (p). Additionally, the devices calculated also the dew point temperature (Td).

The heated versions of the EE872 are suitable even for high humidity and condensing environment. The IP65 enclosure and the PTFE filter cap offer excellent protection in polluted environment. With a catalytic filter cap, the EE872 is also appropriate for applications with periodical H2O2 sterilization.

The CO₂ measured data is available simultaneously on the analogue voltage and current outputs. Depending on the EE872 version, the RS485 interface with Modbus RTU or BACnet MS/TP protocol offers also the RH, T, p, or Td data.

The free PCS10 Product Configuration Software together with an optional adapter cable facilitates the configuration and adjustment of the EE872.

• 4 in 1: C02, RH, Temperature and ambient pressure measurement
• Heated versions for high humidity, condensing conditions
• Dual wavelength NDIR CO2 measuring principle
• CO2 measuring range up to 50,000 ppm
• Temperature and pressure compensation with on-board sensors
• Replaceable sensing module
• IP65 protection class
• Low power consumption
• Excellent long-term stability
• High insensitivity to pollution
• Analogue output or Modbus RTU
• User configurable and adjustable

Accuracy Pressure at 25 °C	typ. ± 2 mbar
Measuring Range Temperatue	-40…60 °C (-40...140 °F)
Accuracy Temperature at 5...60 °C (41…140 °F)	typ. ± 0.5 °C (± 0.9 °F)
Output Analogue	0-5V / 10 V and 0/4-20 mA
Output Digital	Modbus RTU or BACnet MS/TP
Supply	15-35 VDC (current) 12-30 VDC (voltage / RS485)
Measurement Range	0…2000 ppm 0…5000 ppm 0…10000 ppm 0…3 % (30000 ppm) 0…5 % (50000 ppm)
Accuracy	± (50 ppm + 2 % mv) ± (50 ppm + 3 % mv) ± (100 ppm + 5 % mv) ± (1.5 % from full scale + 2 % mv) ± (1.5 % from full scale + 2 % mv)
Measuring Range Relative Humidity	0…95 % RH (non condensing)
Accuracy Relative Humidity at 25 °C (77 °C) and 20...80% RH	typ. ± 3 % RH
Measuring Range Pressure	700…1100 mbar (10.15...15.95 psi)
