EL-USB-3 Voltage Data Logger with USB

Name: EL-USB-3 Voltage Data Logger with USB
SKU: placeholder-el-usb-3-voltage-data-logger-with-usb
Price: 173.87 CAD
Availability: InStock

In Stock

Voltage data logger with USB

Buy now!

$173.87CAD

Have questions? We're here to help!

Call

QTY

Used in

EL USB 3 Voltage Data Logger with USB 00460

Easylog data logger EL USB 3 Angle Lid Off

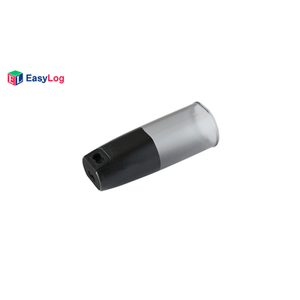

This standalone data logger measures more than 32,000 readings over a 0 - 30 VDC range at a resolution of 5 mVDC. The data logger is supplied with a 0 - 30 VDC cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with 1/2 AA battery and wall mount clip.

• 0 - 30 VDC measurement range
• Stores over 32,000 readings
• Logging rates between 1 s and 12 h
• Connection via two screw terminals
• Immediate and delayed logging start
• User-programmable alarm thresholds
• Status indication via red and green LEDs
• EasyLog software available as a free download
