EL-WiFi-TPX+ WiFi-Connected High-Accuracy Temperature Data Logger

Remotely monitors the environment over a -40 to +125°C (-40 to +257°­­F) measurement range

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
EL Wi Fi TPX Wi Fi Connected High Accuracy Temperature Data Logger 07170
The EL-WiFi-TPX+ remotely monitors the environment over a -40 to +125°C (-40 to +257°F) measurement range, and comes equipped with an alarm warning light and sounder to make sure you never miss a temperature breach. Data is uploaded periodically using a standard WiFi network to the EasyLog Cloud.

EasyLog Cloud gives access to each data logger, and data collected from any internet-enabled device. Change data logger settings remotely, receive email alerts of alarm conditions, link sensors from multiple sites into one account, and assign multiple user privileges.

The device stores data internally if it loses WiFi connection and automatically uploads it to the Cloud once reconnected.

Use the EasyLog Cloud Apps for Android and Apple to easily set up your device and access your data anytime, anywhere.

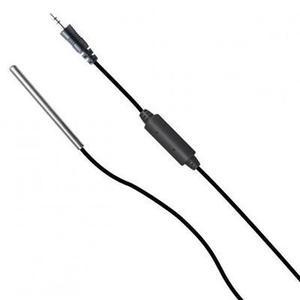

A high accuracy thermistor temperature probe (which can be removed and calibrated separately) and a wall mounting bracket are included with the product.

This product complies with BS EN 12830:2018 (Temperature recorders for the transport, storage, and distribution of temperature-sensitive goods).
• Temperature measurement range -40 to +125 °C (-40 to +257 °F)
• Configurable alarm levels with on-board warning light and  sounder
• Digital calibratable probe with 3m cable (calibration certificate can be ordered  separately)
• No need to remove from service for recalibration, just replace the probe
• Wirelessly stream and view data on the EasyLog Cloud, and configure alarm email notifications
• View and analyse multiple devices, including graphing of historic data
• Easy device setup using free PC software or mobile app
• Device memory stores all data even if Wi-Fi is temporarily disconnected
Measurement range-40 to 125°C (-40 to 257°F)
Dimensions82 x 70 x 36 mm
IP ratingLogger IP42
Probe IP67
USB supply voltage5 Vdc
Battery life>6 months
Logging rateUser selectable
between 10 seconds and 12 hours
ReadingsUnlimited
Operating temperature range-20 to +60°C (-4 to +140°F)
Measurement accuracy±0.2°C (-15 to +80°C)
±0.6°C (-40 to 125°C)
Display resolution0.01
Measurement resolution0.01°C (0.02°F)
• Outside Environmental Data
• Agriculture and Horticulture
• Food Temperature Monitoring
• Facilities Management
