Fluke

FLK-IRR1-SOL Solar Irradiance Meter

Determine the actual solar irradiance (Watts/m²) and shading at the site to develop a baseline

Buy now!
$621.59CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Also found in
FLK IRR1 SOL Solar Irradiance Meter 07728

 If you’re surveying, installing, executing maintenance or checking performance of solar panels or a photovoltaic system, the Fluke IRR1-SOL Irradiance Meter gives you the 4 critical measurements needed all in one easy-to-use tool. Make instantaneous measurements to determine the watt per square meter solar irradiation, required by IEC 62446-1 standard. Measure temperature by either placing the meter directly on the panel or by connecting the external probe. Find cardinal direction with the compass, and verify inclination of a roof or panel with the tilt function.

To find the expected production at a site, determine your solar resource while taking shading into account. The solar resource is measured in peak sun hours: the number of hours per day with 1,000 watts generated per square meter of solar array. Location, time of day, season, and weather conditions all influence peak sun hours. Use the Fluke IRR1-SOL to determine the actual solar irradiance (Watts/m²) and shading at the site to develop a baseline. Once your system is installed, make sure it is operating as designed by measuring its electrical characteristics and the actual power output of the array. The performance of a photovoltaic array is based on its current-voltage (IV) curve. Use the IRR1-SOL to obtain the amount of solar irradiance necessary to calculate the IV curve of the power output. Even when installed correctly, a photovoltaic system may not be producing the expected electrical output. In order to produce the expected output the system needs to receive the correct amount of irradiance energy to generate the DC voltage that is fed into the inverter.
Whether working on a roof-mounted system or on a large field installation, the IRR1-SOL is the single-handed solution that every solar installer and technician needs in their tool bag.


 • Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles

• Make instantaneous measurements to determine the watts per square meter solar irradiation, required by IEC 62446-1 standard
• High contrast LCD with large numbers for easy readability in direct sunlight
• Includes convenient carry case with shoulder strap
Weight 0.5 lb (231 g)
L x W x H 5.90 x 3.14 x 1.37 in (150 x 80 x 35 mm)
Dimensions
Auto Power Off 30 minutes
Battery Life (typical) 50 hours (≤9000 readings)
Batteries 4 AA Alkaline Batteries
Power Supply & Battery Life
IP ProtectionIP40
Protection
USA (FCC)47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
Korea (KCC)Class A Equipment (Industrial Broadcasting & Communication Equipment)
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
CISPR 11: Group 1, Class A
InternationalIEC 61326-1: Portable Electromagnetic Environment
Electromagnetic Compatibility (EMC)
Altitude0 m to max. 2000 m
Storage Temperature-30 °C to 60 °C (humidity <80%)
Operating Temperature 80PR-IRR-30 °C to +100 °C
Operating Temperature IRR1-SOL-20 °C to 50 °C (humidity <80%), noncondensing
Temperature
Note:
a) Measurements valid for device inclination between -20° and +20° to horizontal. Outside that range on LCD will be shown "---".
b) Result is referred to magnetic north.
Measuring Accuracy±7°
Resolution1°
Measuring Range0° to 360°
Compass
Measuring Accuracy± 1.5°@ -50° to +50°, ±2.5° @ -85° to -50° and +50° to +85°, ±3.5° @ -90° to -85° and +85° to +90°
Resolution0.1°
Measuring Range-90° to +90°
Inclination Angle
Note: Temperature measurement response time: ~30 sec.
Measuring Accuracy±2 °F (±1 °C) @ 14 °F to 167 °F (-10 °C to 75 °C),
±4 °F (±2 °C) @ -22 °F to 14 °F (-30 °C to -10 °C) and 167 °F to 212 °F (75 °C to 100 °C)
Resolution0.2 °F (0.1 °C) / 1 °F @>100 °F
Measuring range (°C)-22 °F to 212 °F (-30 °C to 100 °C)
Temperature Measurement
Measuring Accuracy± (5 % + 5 Digit)
Resolution1 W/m²
Measuring Range0 to 1400 W/m²
Irradiance
  • Thumbnail of document Data Sheet - FLK-IRR1-SOL Solar Irradiance Meter
    Download

    Data Sheet - FLK-IRR1-SOL Solar Irradiance Meter

    Download

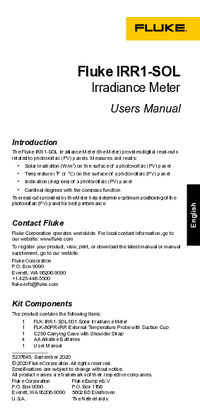

  • Thumbnail of document Manual - FLK-IRR1-SOL Solar Irradiance Meter
