Starting at $2,528.00CAD
Configure
Bacharach

0024-85 Fyrite INSIGHT Plus Combustion Analyzer

Combustion analyzer that measures O2., CO2., temperature, and pressure using innovative Tune-Rite software

Starting at
$2,528.00CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
Also found in
Fyrite INSIGHT Plus Combustion Analyzer 02749
Fyrite INSIGHT Plus 2
Fyrite INSIGHT Plus 3
Fyrite INSIGHT Plus 4

INSIGHT® Plus is the perfect tool for busy residential/light-commercial technicians who need to ensure safe operating conditions and determine combustion efficiency. Powered by innovative Tune-Rite® software (patent pending), the industry’s first-ever on-demand HVAC “assistant,” the INSIGHT® Plus helps both new and seasoned technicians save money by making more thorough and efficient service calls.

The INSIGHT® Plus includes sensors for Oxygen (O2) and Carbon Monoxide (CO), which includes a built-in NOx filter.   The O2 sensor has a 3 year warranty, while the CO sensor can be replaced in the field without down time using B-Smart® pre-calibrated sensors. The INSIGHT® Plus calculates values like efficiency, CO2* and CO air-free to help monitor combustion processes effectively and accurately.



• All-in-one instrument makes combustion tuning fast and simple with readings for O2, CO, CO2, combustion efficiency, temperature and draft
• Industry-exclusive Tune-Rite HVAC assistant analyzes combustion data and provides real-time troubleshooting suggestions
• Automatic sensor protection helps technicians protect the analyzer in harsh environments, extending sensor life
• Long life O2 sensor with 3 year warranty reduces maintenance costs and downtime
• Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas
• Combustion App allows users to quickly create custom reports with comments and send via email (available for Android & iOS)
MeasurementsO2.: 0 to 20.9%
CO (w/integrated NOx. filter): 0 to 4000 ppm
Stack temperature: -4 to 1202 °F (-20 to 650 °C)
Primary/ambient air temperature: -4 to 600 °F (-20 to 316 °C)
Draft/differential pressure: ± 40 in H2.O (±10 mbar)
Display2.8 in. (72 mm) color LCD w/backlight
Power4x AA batteries or optional USB wall adapter
Run Time15 hours minimum (alkaline batteries)
Size (H x W x D)8.0 x 3.6 x 2.3 in. (20.3 x 9.1 x 5.8 cm)
Weight1 lb. (0.45 kg) including batteries
Fuels[1]Natural gas, coal, oil 2/4/6, wood, kerosene, propane, butane, LPG, B5, KOKS, LEG, biofuel, +2 optional custom fuels
Operating Conditions23 to 113 °F (-5 to 45 °C), 15 to 90% RH (non-condensing), 1 ATM ± 10%
Warm-up Time30 to 60 seconds
Memory100 locations
CommunicationsUSB 2.0 (mini-B), IrDA
Warranty2 years (including sensors)
3 years for long-life O2. sensor, if equipped
[1] Depending upon combustion equation setting (North American or Siegert) – see manual for details

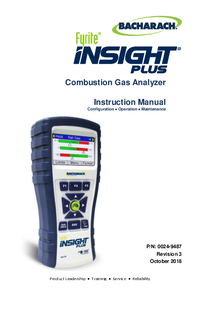

  • Thumbnail of document Manual - Fyrite INSIGHT Plus Combustion Analyzer
    Download

    Manual - Fyrite INSIGHT Plus Combustion Analyzer

    Download
  • Thumbnail of document Data Sheet - Fyrite INSIGHT Plus Combustion Analyzer
    Download

    Data Sheet - Fyrite INSIGHT Plus Combustion Analyzer

    Download

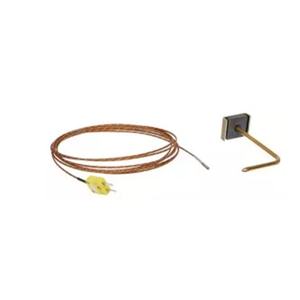

Accessories
