GPR-2000 Oxygen Analyzer

Name: GPR-2000 Oxygen Analyzer
SKU: placeholder-gpr-2000-oxygen-analyzer
Availability: InStock

Designed for percentage level oxygen measurements with an LDL of 0.005% (50ppm) O2, general purpose or intrinsically safe models

Have questions? We're here to help!

Call

Used in

Suitable for trace oxygen measurements from 0.1 ppm through to purity applications at 100% oxygen, these rugged portable instruments share the same advanced sensor technology as the online process oxygen analyzers ensuring confidence in their reliability and accuracy.

The Analytical Instruments concept of using the same HMI and menu structures for portable and online analyzers makes it extremely easy for operators to use both types of instruments on their site without need for extra training.

• Measurement ranges from 0-10 ppm up to 0-100% O2

• Up to 5 ranges per model with manual or auto-ranging feature

• ATEX models are rated for IIC gases

• Rugged design, proven to last in field operation

• Lightweight (2.5Kgs) and easy to use

• Up to 30 days battery life (40 hours with pump)

• 24 to 32 months sensor life span (in normal use)

• Internal pump option

• 0-1V output

• XLT sensor options for CO2 background

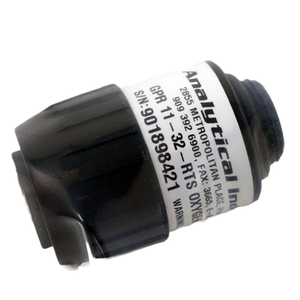

Sensor Model	GPR-11-32-RTS XLT-11-24-RTS for gas mixture with > 0.5% CO2
Sensor Life at 25ºC (77°F) and 1 atm	GPR-11-32-RTS 32 months in air XLT-11-24-RTS 24 months in air
Calibration Interval	30 days
Inlet Pressure	0.34 - 2 barg (5-30 psig) with atmospheric vent
Flow Rate	0.5-1.0 l/m (1-2 SCFH)
Gas Connections	1/8" compression tube fittings
Wetted Parts	GP version: Brass, plastic ATEX version: Stainless steel flow housing, tubing and fittings
Display	Graphical LCD 7 x 3.5cm (2.75 x 1.375")
Resolution	0.001%
Enclosure	Painted aluminum NEMA 4X, 10.1 x 22.9 x 7.6cm (4 x 9 x 3") 3.64kg (8lbs)
Measurement Range	0-1%, 0-5%, 0-10%, 0-25%
Accuracy	< 2% of selected range at constant conditions
Response Time	T90 < 10 seconds
Sensitivity (LDL)	0.005%
Linearity	< 1% of scale
Compensation	Barometric pressure and temperature
Signal Output	0-1V
LED Indicators	LOW BATT (72 hr. warning); CHARGE mode
Operating Temperature	5°C to 45°C (41°F to 113°F) (GPR sensor), -10° to 45°C (14°F to 113°F) (XLT sensor)
Power	Rechargeable battery (lead acid)
Battery Life	Up to 30 days on a single charge (40 hours with pump running)
Area Classification	ATEX: Ex ib IIB T4 Tamb +5°C to +45°C
