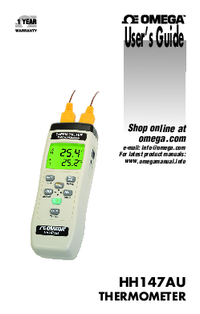

HH147AU 2 Channel Handheld 7 Thermocouple Types Datalogger USB output
2-Channel Thermocouple Thermometer with Data Logging
Supported Applications
The Omega HH147AU is a dual-channel handheld thermocouple thermometer designed for measuring temperature using K, J, T, E, R, S, or N type thermocouples. The device features USB connectivity for data logging and software installation. It is intended for indoor use in non-hazardous environments with Pollution degree 2.
Operating Conditions & Performance
The HH147AU supports the following measurement ranges by sensor type:
• K type: -200°C to 1372°C
• J type: -200°C to 1200°C
• T type: -200°C to 400°C
• E type: -200°C to 1000°C
• R type: 0°C to 1760°C
• S type: 0°C to 1760°C
• N type: -200°C to 1300°C
Accuracy is specified as ±0.5% of reading ±1 digit or ±1.5°C for K, J, T, E, R, S, N types. The resolution is 0.1°C / 0.1°F with a typical response time of 1 second. Ambient operating temperature ranges from 0°C to 50°C, and storage temperature spans -20°C to 60°C. Operating altitude is up to 2000M.
Approvals & Safety
The series carries CE approval with EMC compliance: EN61326-1; CISPR 11: Group 1, Class B. Warnings indicate the device should not be operated in environments with flammable gas or humid environments.
Configuration Options
The HH147AU features a dual LCD display for T1 and T2 readings with backlight capability. Functional capabilities include an alarm function, data hold, auto power off, relative value measurement, offset setting, and maximum/minimum/average value tracking.
Power & Connectivity
The unit is powered by a 9V alkaline battery or a 9V AC to DC adapter. Data output is provided via USB data output socket (DC 9V input). Thermocouple inputs utilize yellow, 2-pin connectors at terminals T1 and T2.
Accessories
The standard package includes:
• Meter
• User manual
• 9V alkaline battery
• Carrying case
• 9V AC to DC adaptor
• USB cable
• Installation disk
Key Product Differences
The HH147AU-Series is represented by the single model number guide HH147AU. The device housing material is plastic.
| Additional Features 1 | MIN/MAX/AVG/REL/HOLD Functions , Auto Power-Off |
| Battery life | 1000 hr |
| Data Interface | USB |
| Data Interface Note | USB PC Serial Interface |
| Display Type | LCD |
| Display Type Note | Large Backlit LCD with 5-Digit Display |
| Height | 40 mm |
| Length | 155 mm |
| Measurement Type | Temperature |
| Number of Measurements | 2 |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Relative Humidity, Max | <80% |
| Samples,Max | 14000 |
| Series ID | HH147AU-Series |
| Software Compatibility | Windows XP SP3/7/8/10 |
| Storage Temperature, Max | 50 °C |
| Storage Temperature, Min | 0 °C |
| Temperature Accuracy | ± 0.05 % |
| Temperature Measurement Note | ITS-90 |
| Temperature Sensor Type | Thermocouple |
| Weight | 170 g |
| Width | 56 mm |
