Starting at $808.50CAD

HiTemp140-FP Flexible Probe Temperature Data Logger

Name: HiTemp140-FP Flexible Probe Temperature Data Logger
Brand: Madgetech
SKU: placeholder-hitemp140-fp-flexible-probe-temperature-data-logger
Price: 808.50 CAD
Availability: InStock

Durable, user-friendly, high Temp. data logger featuring a long, flexible RTD probe, narrow & lightweight design, & user-replaceable battery

Starting at

$808.50CAD

Have questions? We're here to help!

Call

Configure

Used in

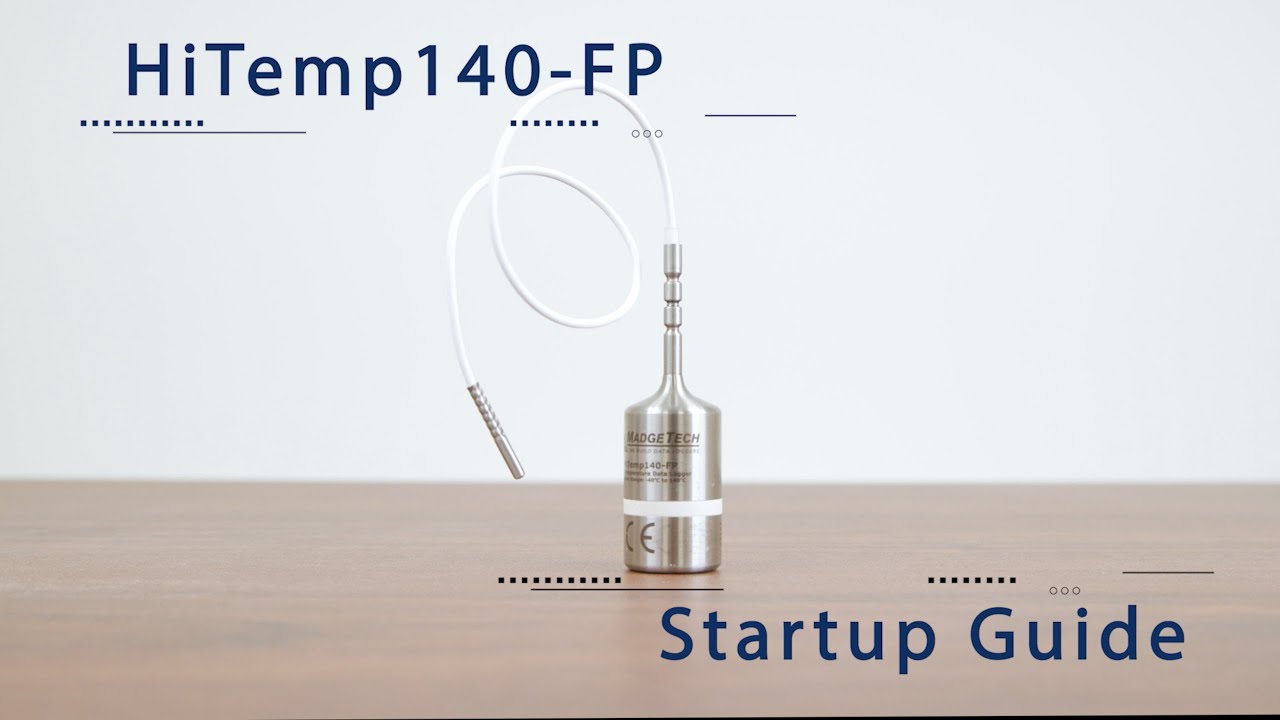

Hi Temp140 FP Flexible Probe Temperature Data Logger 01846

The HiTemp140-FP is a high temperature data logger built for use in harsh environments. The body of the HiTemp140-FP can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.

The HiTemp140-FP is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

±0.1 °C (± 0.18 °F) Accuracy
Probe Measurement Range -200 °C to +260 °C (-328 °F to +500 °F)
Operating Environment -40 °C to +140 °C
Submersible (IP68)
User-Replaceable Battery
Durable
Programmable Start and Stop Time
Five probe lengths: 6, 12, 24, 36 and 72 inches
Battery life indicator

General
Memory	32,356 readings
Reading Rate	1 reading every 0.25 seconds up to 1 reading every 24 hours
Baud Rate	125,000
Battery Life	2 years typical (1 minute reading rate) Fast reading intervals and extreme temperatures will shorten the battery life substantially User Replaceable Battery
Material	Body: 316 Stainless Steel, Radel Probe: PFA Insulated Cable with Stainless Steel Tip
Dimensions	Body: 2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm) Probes: HiTemp140-FPST-6: 6 in x 0.13 in (152.5 mm x 3.2 mm) HiTemp140-FPST-12: 12 in x 0.13 in (304.8 mm x 3.2 mm) HiTemp140-FPST-36: 36 in x 0.13 in (914 mm x 3.2 mm) HiTemp140-FPST-72: 72 in x 0.13 in (1829 mm x 3.2 mm)
Key Ring End Cap	Key ring replaces standard bottom Thru-hole: 0.150"
IP Rating	IP68
Submersible	Yes
Operating Environment	-40 °C to +140 °C (-40 °F to +284 °F) Body of Logger Cannot Exceed 140 °C 0 %RH to 100 %RH, 0 PSIA to 100 PSIA With Thermal Shield: -200 °C to +250 °C (-328 °F to +482 °F)
Required Interface Package	IFC400 or IFC406
Approvals	CE
Weight	0.1875 LBS
Temperature
Temperature Sensor	Flexible RTD Probe
Temperature Resolution	0.01 °C (0.018 °F)
Temperature Calibrated Accuracy	±0.1 °C from +20 °C to +140 °C ±0.3 °C from -20 °C to +19.99 °C ±0.4 °C from -40 °C to -20.01 °C
Probe Temperature Range	-200 °C to +260 °C (-328 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C)
