HiTemp140-M12 Data Logger

Name: HiTemp140-M12 Data Logger
SKU: placeholder-hitemp140-m12-data-logger
Price: 898.50 CAD
Availability: InStock

Rugged & versatile high Temp. data logger featuring an M12 probe connector, water tight body enclosure, capable of measuring up to 850 °C

Starting at

$898.50CAD

Have questions? We're here to help!

Call

Configure

Used in

The HiTemp140-M12 is a rugged and versatile high temperature data logger featuring an M12 probe connector. Compatible with a wide variety of M12 RTD probe styles, this data logger is capable of measuring up to 850°C (1562°F) (probe dependent).

All of MadgeTech’s HiTemp140 data loggers have a water tight body enclosure made of food grade stainless steel and can be placed in environments with temperatures as high as 140°C (284°F). The operating range of the data logger body can be extended to higher temperatures when used with MadgeTech’s thermal barrier options and suitable probe.

The HiTemp140-M12 records and stores up to 43,690 time stamped readings and is equipped with non-volatile solid state memory which retains data even if the battery becomes discharged.

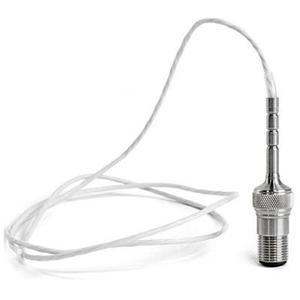

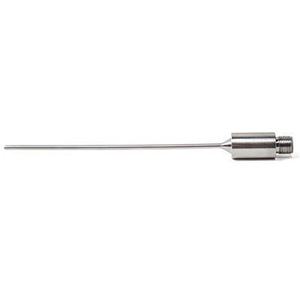

A wide selection of compatible M12 probes are available on the market to choose from, making the HiTemp140-M12 the most dynamic data logger of its kind. With the ability to change probes as needed, this device satisfies a multitude of application needs with one powerful data logger versus the need for multiple loggers.

Note: Calibration Certificate standard calibration is two points at 50 Ω and 150 Ω and is verified at 100 Ω.

• Measurement range of -200ºC - 850ºC (-328ºF - 1562ºF)
• ± 0.05°C (± 0.09°F) accuracy
• M12 probe connector
• User replaceable battery
• Trigger settings
• Programmable start and stop time
• Battery life indicator

Temperature Sensor	Various RTD Probes with M12 Connector (Sold Separately)
Temperature Resolution	0.0001 Ω, 0.01 °C (0.02 °F) (Probe Dependent)
Temperature Calibrated Accuracy	±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent) Calibrated Accuracy Range: 18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F) Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range.
Probe Temperature Range	18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent)
Memory	43,690 readings
Reading Rate	4 readings per second up to 1 reading every 24 hours
Baud Rate	125,000
Battery Life	2 years typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery
Material	316 Stainless Steel
Dimensions	2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm)
IP Rating	IP40 - logger alone (with no probe connected) The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K).
Submersible	Yes (with probe attached)
Operating Environment	-40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA
Required Interface Package	IFC400 or IFC406
Approvals	CE

Temperature
Temperature Sensor	Various RTD Probes with M12 Connector (Sold Separately)
Temperature Resolution	0.0001 Ω 0.01°C (0.02°F) (Probe Dependent)
Temperature Calibrated Accuracy	± 0.015 Ω ± 0.05°C (± 0.09°F) (Probe Dependent)
Calibrated Accuracy Range*	18 Ω - 200 Ω -200°C - 265°C (-328°F - 509°F) (for 0 Ω - 200 Ω range)
Probe Temperature Range	18 Ω - 400 Ω -200°C - 850°C (-328°F - 1562°F) (Probe Dependent)
Connector Type	M12 Female, 4 Pin
General
Memory	43,690 readings
Reading Rate	4 readings per 1 s up to 1 reading every 24 hrs
Baud Rate	125,000
Start Modes	Software programmable immediate start Delay start up to 18 months in advance
Stop Modes	Manual or Timed (specific date and time)

• Depyrogenation
• Autoclave verification
• Food preparation and processing
• Environmental studies
• Well monitoring
• Washer disinfectors
• Pasteurization
• Many more applications (probe dependent)
