Rotronic

HP23-AW-A Portable Water Activity Meter Set

The perfect solution for on-site water activity measurements to confirm product stability and indicate shelf life

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!

In many situations it can be very useful to measure water activity in production or storage rooms, e.g. inspection of bulk materials to ensure they meet specifications. The HygroPalm 23-AW-A is ideal for measuring water activity in production processes such as random checks of cheese, meat, tobacco, building materials, animal feeds, bakery products, paper, medicines, horticulture, agriculture, etc.

Applications
The HygroPalm HP23-AW-A offers the perfect solution for on-site water activity measurements to confirm product stability and indicate shelf life. The HP23-AW-A is suitable as a mobile laboratory unit. Equal to the HygroLab C1 the HP23-AW-A is perfect as a portable analyzer with two probe inputs for any suitable HC2 probe. The HP23-AW-A can also be used in conjunction with HW4-P-QUICK-Vx.

Portable and convenient
Handheld instrument specially configured to suit the water activity user. It includes many of the advanced features of the HygroLab C1, but in a convenient portable configuration.medicines, horticulture, agriculture, etc.

The Rotronic HP23-AW-A-Set-14 ships complete with:

•HC2-AW probe for the measurement of product samples
•WP-14-S sample holder
•PS14; 100 disposable sample cups, 14mm deep (0.55")
•EA10; Humidity Standard 10%RH (Five vials per box)
•EA35; Humidity Standard 35%RH (Five vials per box)
•EA50; Humidity Standard 50%RH (Five vials per box)
•EA80; Humidity Standard 80%RH (Five vials per box)

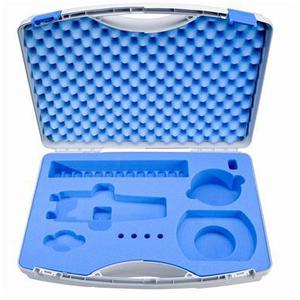

•AC1124; Carrying Case

The Rotronic HP23-AW-A-Set-40 ships complete with:

•HC2-AW probe for the measurement of product samples
•WP40S; Dual 14mm/40mm sample cup holder (with insert)
•PS-40 disposable sample container (100pc)
•EA10; Humidity Standard 10%RH (Five vials per box)
•EA35; Humidity Standard 35%RH (Five vials per box)
•EA50; Humidity Standard 50%RH (Five vials per box)
•EA80; Humidity Standard 80%RH (Five vials per box)
•AC1124; Carrying Case



• 2 input channels for HC2 station probes or HC2 insertion probes can be connected for measurement of water activity, relative humidity and temperature
• AW Quick function for fast measurement results (typically 4-5 minutes)
• Audible alarm to indicate completed measurement
• Saves up to 10,000 data records with %rh, °C, date and time
• Battery charging function

Range of application-10…60 °C (14…140 °F) / 0…1 Aw / 0…100 %RH
Power supply/Power consumption9 V battery or 9V power supply via mini USB, consumption <10 mA
Power supply9 V battery or USB/ mains adapter via mini USB
Current consumptionMax. 20 mA (backlight ON)
CalculationsAll psychrometric calculations available
Number of probe inputs1
Probe connections2 HygroClip2 or analog input 0…3.2 VDC (power supply for analog probe: 5 VDC)
Start-up time3 s
Measurement interval1 s, 10 s, 1 min, 10 min
Parameters shownAw, % RH, °C, °F
LCD3-line alphanumeric with trend indicators
Acoustical alarm (Beeper)No
Battery indicatorYes
ClockReal time clock provides a time stamp for every measurement
Memory sizeCapture mode: 8 x 250 values / Logging mode: 10,000 values
HW4 compatibleYes, for all HW4 versions
Probe adjustmentSingle or multiple point for relative humidity & temperature.
One or two point temperature
Aw-quick modeYes
Aw Quick functionIntegrated and via HW4 software HW4-P-QUICK-Vx (in shipment included)
Firmware updateWith internet and HW4 software
Communication interfacesMini USB
Service InterfaceMini USB
Enclosure materialABS
IP protection ratingIP30
FDA / GAMPFDA 21 CFR part 11 / GAMP5
CE / EMC conformEMC 2008/108/EG
Weight200g
Weight300.0000
  • Thumbnail of document Manual - HP23-AW-A Portable Water Activity Meter Set
    Download

    Manual - HP23-AW-A Portable Water Activity Meter Set

    Download
  • Thumbnail of document Data Sheet - HP23-AW-A Portable Water Activity Meter Set
    Download

    Data Sheet - HP23-AW-A Portable Water Activity Meter Set

    Download
