Particle Measuring Systems
HSLIS High-Sensitivity Liquid Particle Counter
High-Sensitivity Liquid Particle Counter: HSLIS
The HSLIS e-Series (High Sensitivity Liquid In Situ) particle counter provides continuous, real-time monitoring of contamination levels in DI water and process chemicals. The combination of high sensitivity and low cost makes it ideal when large numbers of sensors and/or long term trending are required.
The HSLIS e-Series has sizing sensitivity down to 0.05 µm in DI water and 0.065 µm in process chemicals.
Integration of the HSLIS e-Series into Particle Measuring Systems’ Facility Net software provides an economical way to monitor multiple flow systems and provide dedicated local display and control capabilities.
- Monitor for long term trends in fluid quality
- Control and monitoring of multiple particle counters using Ethernet
- Low initial capital investment and lower maintenance cost with proven reliability of the HSLIS design
- Tabular and statistical process control (SPC) charts for detailed statistical information
- Alphanumeric paging and e-mailing functions to alert operator of data exxcursions
- Sensor status displays four-level alarm for monitoring out-of-spec condition
- Simplified data interpretation with real-time and retrieved time plots

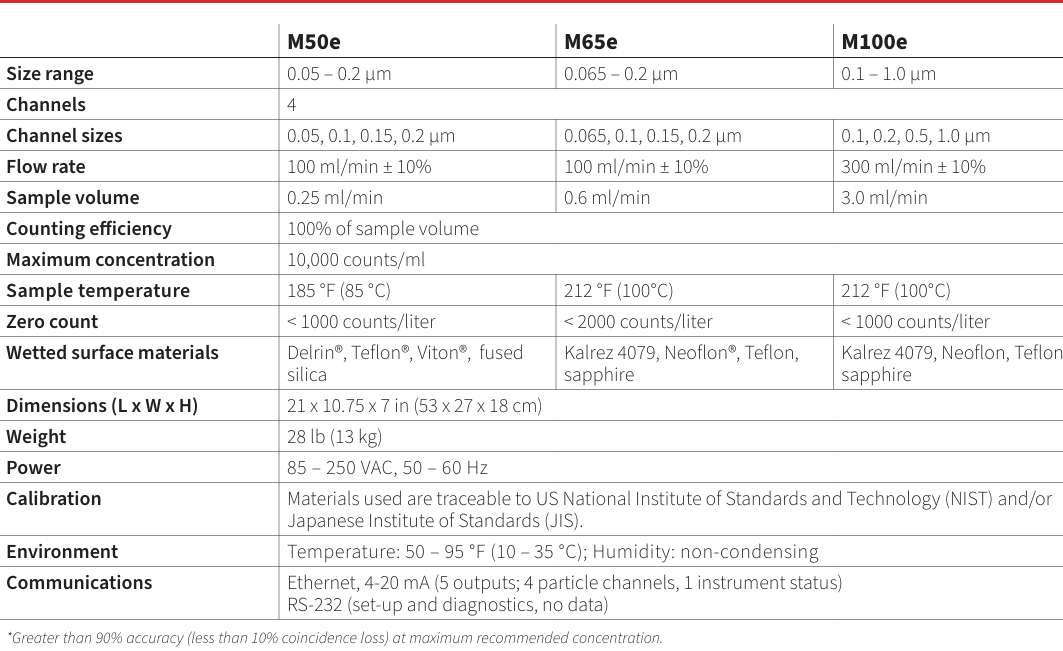

- 4 channels
- 0.05, 0.1, 0.15, 0.2 µm size range
- Operates with an optimal flow rate of 100 ml/min ± 10%
- Samples of 0.25% of the flow volume or 0.25 ml/min
- Compatible with Facility Net software
- Existing network can be utilized with ethernet communication to Facility Net software
- Real-time particle monitoring within chemical distribution systems
- Point-of-process monitoring
- Chemical packaging operations monitoring
- Chemical filter performance and efficiency characterization
- Performance testing of chemical handling components
