HygroLab C1 Water Activity Indicator

Laboratory grade indicator for measuring the water activity of foods, pharmaceuticals and cosmetics

This product is no longer sold. View active Product

Have questions? We're here to help!

Call

Hygro Lab C1 Water Activity Indicator 01115

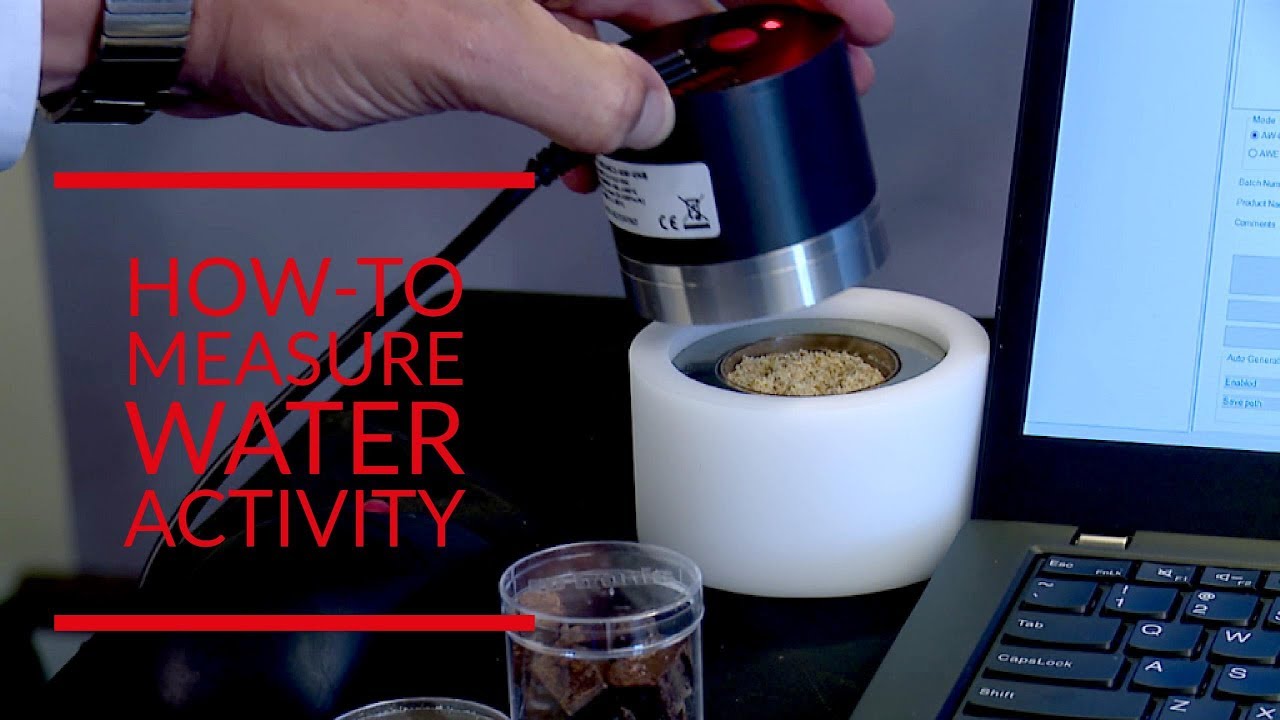

Rotronic provides a high-end laboratory device – the HygroLab C1 – for water activity measurements with up to four probes. Connect station probes and insertion probes for measuring water activity in cheese, meat, tobacco, building materials, animal feed, pharmaceuticals products and much more.

Validated software
Easy-to-use and intuitive, the laboratory grade indicator can be used by anyone. HW4 running on a PC provides remote monitoring with charting and data recording functions.

The Rotronic HygroLab C1 is available as the indicator only or in a kit which includes:

• Bench top display device (including power adapter AC -> DC 12V & HW4 software with Aw-Quick): HygroLab C1
• Measurement probe: HC2-AW
• USB-Cable for PC connection: AC0002
• Sample holder: WP-40
• Disposable sample container (100 pc.): PS-14
• Disposable sample container (100 pc.): PS-40
• Humidity standards 0.5 %RH: EA00-SCS
• Humidity standards 10 %RH: EA10-SCS
• Humidity standards 35 %RH: EA35-SCS
• Humidity standards 50 %RH: EA50-SCS
• Humidity standards 80 %RH: EA80-SCS

• 4 input channels for HC2 station probes or HC2 insertion probes can be connected for measurement of water activity, relative humidity and temperature
• Aw Quick function for fast measurement results (typically 4-5 minutes)
• Audible alarm to indicate completed measurement
• Saves up to 2,000 data records with %RH, °C/°F, date and time

Range of application	-10…60 °C (14…140 °F) / 0…1 Aw / 0…100 %RH
Power supply / Power consumption	8…16 VDC (+ AC adapter)
Current consumption	Max. 120 mA (12 VDC, backlight ON, 4 probes connected, Ethernet)
Calculations	All psychrometric calculations available or user defined calculations
Probe connections	4 x HC2 station probe or HC2 insertion probe
Start-up time	3 s
Measurement interval	1 s
Parameters shown	Aw, % RH, °C, °F
LCD	3-line alphanumeric with trend indicators
Clock	Real time clock provides a time stamp for every measurement
Memory size	4 x 500 Aw values (2,000 Aw values)
HW4 compatible	V3.1 and higher
Probe adjustment	Single or multiple point for relative humidity & temperature. One or two point temperature
Aw Quick function	Integrated and via HW4 software HW4-P-QUICK-Vx (in shipment included)
Communication interfaces	Ethernet / USB
Material	Aluminum, ABS-757
IP protection rating	IP21
FDA / GAMP	FDA 21 CFR part 11 / GAMP5
CE / EMC conform	EMC 2008/108/EG
Dimensions	225 x 170 x 70 mm
Weight	1100 g
