ACR Systems

JR-1001 Data Logger

Low cost, intrinsically safe, single-channel temperature data logger with 5 year battery life

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
JR 1001 Data Logger 00348

The JR-1001 is a low-cost, user configurable temperature logger ideal for quick and accurate temperature readings in a variety of applications.  Easy-to-use and single-channel, the JR-1001 is intrinsically safe. Simply plug it into a computer for easy data downloading.  Featuring a 5-year battery life, it has the capacity to record for up to 44 days.o-use single- channel data logger. It is ideal for quick and accurate temperature recordings in a variety of applications.

The JR Series is a step up from the SmartButton and economically offers a fuller feature set, more memory, and a longer battery life.

• Widest temperature range of -40°C - 85°C (-40°F - 185°F)
• 32 kB memory for up to 244,800 readings with data compression
• Lightweight, compact design with polyurethane encapsulation to protect electronics
• Industry-leading five (5) year battery life
• Three (3) year warranty


Size33 mm x 43 mm x 20 mm (1.3 in x 1.7 in x 0.75 in)
Weight35 g (1.23 oz)
Case MaterialPolyurethane
Operating Limits-40°C - 85°C (-40°F - 185°F)
Clock Accuracy± 2 s/day
Battery3.6 V Lithium, 0.45 Amp-Hour
Battery Life5 years (under normal use)
Memory Size32 kB (up to 244,800 readings when data compression selected)
PC RequirementsWindows PC with a least 256 MB RAM, 250 MB of hard drive space and one free serial or USB port depending on interface
Software RequirementsTrendReader® 2 Express or TrendReader® 2 (compatible with Windows® XP, Vista, Windows 7, Windows 8 & Windows 10)
Logger Resolution0.4°C @ 25°C (0.7°F @ 77°F)
Memory Size32 kB (up to 244,800 readings when data compression selected)
Temperature Sensor TypeNTC Thermistor 10,000 Ω @ 25°C (77°F)
Temperature Sensor Range-40°C - 85°C (-40°F - 185°F)
Temperature Sensor Accuracy± 0.2°C @ 25°C (± 0.3°F @ 77°F)
ApprovalUL-C/US Intrinsically Safe for use in:
Class I, Division 1, Groups C and D
Class II, Division 1, Groups E, F and G
Class III, Division 1, Hazardous Locations T4

Common Specifications

Size33 x 43 x 20 mm (1.3" x 1.7" x 0.75")
Weight35 grams (1.23 ounces)
Case MaterialPolyurethane
Operating Limits-40 to 85 °C (-40 to 185 °F)
Clock Accuracy+/-2 seconds per day
Battery3.6 volt Lithium, 0.45 Amp-Hour
Battery Life5 years (under normal use)
Memory Size32 KB (up to 244,800 readings when data compression selected)
PC RequirementsWindows PC with a least 256MB RAM, 250MB of hard drive space and one free serial or USB port depending on interface
Software RequirementsTrendReader® 2 Express or TrendReader® 2 (compatible with Windows® XP, Vista, Windows 7, Windows 8 & Windows 10)



JR-1000

Logger Resolution0.4°C @ 25°C (0.7°F @ 77°F)
Memory Size32 KB (up to 244,800 readings when data compression selected)
Temperature Sensor TypeNTC Thermistor 10,000 ohms @ 25°C (77°F)
Temperature Sensor Range:-40 to 85°C (-40 to 185°F)
Temperature Sensor Accuracy+/- 0.2°C @ 25°C (+/- 0.3°F @ 77°F)



JR-1001

Sampling IntervalUser selectable from 8 seconds to 34 minutes
Sampling MethodContinuous, Stop when Full
Logger Resolution0.4°C @ 25°C (0.7°F @ 77°F)
Memory Size32 KB (up to 244,800 readings when data compression selected)
Temperature Sensor TypeNTC Thermistor 10,000 ohms @ 25°C (77°F)
Temperature Sensor Range:-40 to 85°C (-40 to 185°F)
Temperature Sensor Accuracy+/- 0.2°C @ 25°C (+/- 0.3°F @ 77°F)
ApprovalUL-C/US Intrinsically Safe for use in:
Class I, Division 1, Groups C and D
Class II, Division 1, Groups E, F and G
Class III, Division 1, Hazardous Locations T4



  • Thumbnail of document Manual - JR-1001 Data Logger
    Download

    Manual - JR-1001 Data Logger

    Download
  • Thumbnail of document Data Sheet - JR-1001 Data Logger
    Download

    Data Sheet - JR-1001 Data Logger

    Download

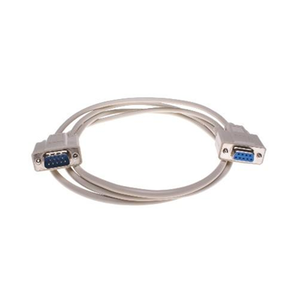

Accessories
