Bacharach

Leakator 10 Gas Leak Detector

Multi-purpose, hazardous location-certified combustible gas leak detector

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Also found in
Leakator 10 Gas Leak Detector 02767

The Leakator® 10 is an ideal instrument for pinpointing combustible gas leaks in a number of residential, commercial and industrial applications, including gas pipeline surveying and valve, regulator and gas meter inspection. It uses a long-life (5 years typical) sensor and is easy to operate with one hand, giving you a reliable, easy-to-use tool.

The Leakator® 10 has a long, flexible neck for detecting leaks in hard-to-reach areas, bright LED scale to show relative leak sizes and a manual balance feature for finding leaks in backgrounds where target gas is present. It is UL 913 certified for hazardous locations, and carries a 1 year warranty that includes the sensor.


• Detects all combustible gases with excellent sensitivity and no calibration required

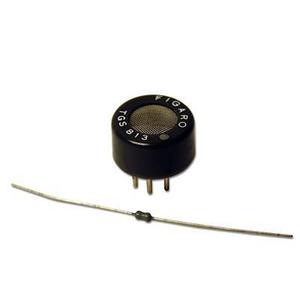

• Sensor located in the probe tip for ultimate sensitivity, fast response and easy changing

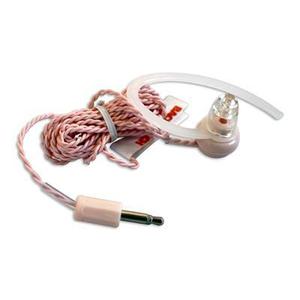

• Visual and audible indicators include an ultra-bright LED scale and a speaker (with earphone option)

Gases DetectedAll hydrocarbons/combustible gases, including but not limited to: acetone, acetylene, benzene, butane, ethanol, gasoline, hexane, hydrogen, industrial solvents, methane, naptha, natural gas, paint thinners and propane
Sensitivity20 ppm methane
Response Time< 3 seconds to full scale indication
Leak IndicatorsVisual (10 ultra-bright red LEDs) and audible (via internal speaker or optional earphone)
Automatic Background AdjustmentNo (manual)
Power5x C batteries
Run Time30 hours typical (alkaline batteries)
Size (H x W x D)Unit: 8.5 x 3.5 x 1.75 in. (21.6 x 8.9 x 4.4 cm)
Probe: 20 in. (50.8 cm)
Weight12 oz. (340 g) without batteries
Sensor Life5 years (typical)
Operating Conditions23 to 130 °F (-5 to 54 °C), 10 to 85% RH (non-condensing), 1 ATM
Warm-up Time23 to 130 °F (-5 to 54 °C), 10 to 85% RH (non-condensing), 1 ATM
Warm-up Time1 minute (approximate)
ApprovalsCE mark

UL 913 Class 1, Division 1, Groups A, B, C & D
Warranty1 year (including sensor)
Warranty: 1 Year (Including Sensor)
Approvals: UL 913 Class 1, Division 1, Groups A, B, C & D
Expected Sensor Service Life: 5 Years
Product Weight: 12 oz (340 g) w/out batteries
Product Dimensions (L×W×H): 8.5" × 3.5" × 1.75" (21.6 × 8.9 × 4.4 cm)
Status Indicator: Visual (10 ultra-bright red LEDs) and audible (via internal speaker or optional earphone)
Altitude: 1 ATM
Humidity: 10 to 85% RH (non-condensing)
Ambient Temperature: 23 to 130 °F (-5 to 54 °C)
Warm-Up Time: 1 minute (approximate)
Run Time: 30 hours typical (alkaline batteries)
Power: 5x C batteries
Response Time: < 3 seconds to full scale indication
Background Adjustment: Manual
Sensitivity / Minimum Detection Limit:20 ppm methane

The Leakator® 10 is an ideal instrument for pinpointing combustible gas leaks in a number of residential, commercial and industrial applications, including gas pipeline surveying and valve, regulator and gas meter inspection

The Leakator® 10 has a long, flexible neck for detecting leaks in hard-to-reach areas

  • Thumbnail of document Data Sheet - Leakator 10 Gas Leak Detector
    Download

    Data Sheet - Leakator 10 Gas Leak Detector

    Download

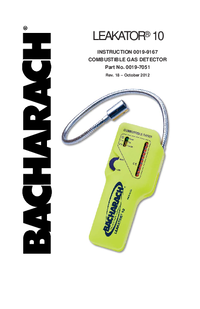

  • Thumbnail of document Manual - Leakator 10 Gas Leak Detector
    Download

    Manual - Leakator 10 Gas Leak Detector

    Download
