Lumiglas® Low Pressure Weld-On Sight Glass

Complete with glass disc, seal gasket, & cushion gasket bolted between circular flanges

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
Lumiglas Low Pressure Weld On Sight Glass 00167

These weld-type sight glass fittings, complete with glass disc, seal gasket, and cushion gasket bolted between circular flanges, is the low-pressure version of the DIN28120. The units can be combined with Lumiglas luminaires, such as the USL05-Ex, USL06-Ex, USL07-Ex or USL08-Ex , for use in hazardous areas. Under all normal working conditions, light options include USL01 , USL13 , USL15 , USL05 , USL06 , or USL07 . For an integral light/sight glass, combine the low pressure unit and LumiStar light.





• smaller outer diameter, and therefore smaller vessel cutout
• shallower height above weld
• less weight
• easier to clean
• lower profile

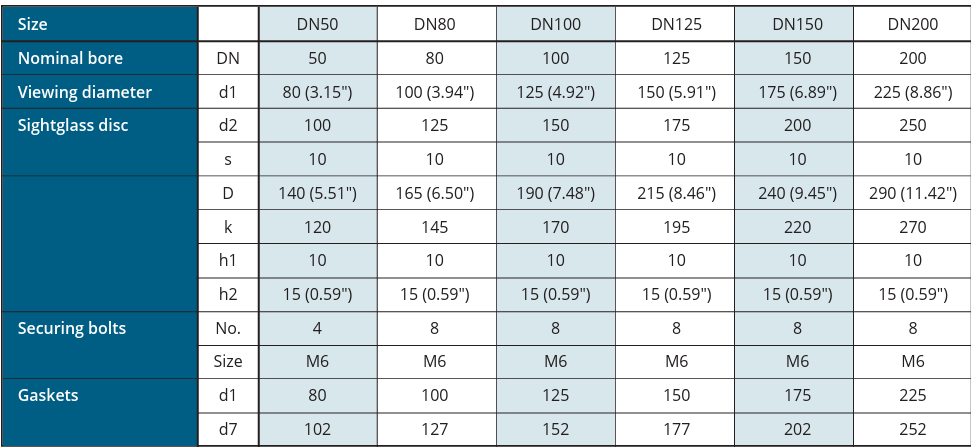

Size

DN50

DN80

DN100

DN125

DN150

DN200

Nominal Bore

DN

50

80

100

125

150

200

Viewing Diameter

d1

80 mm

(3.15 in)

100 mm

(3.94 in)

125 mm

(4.9 in)

150 mm

(5.91 in)

175 mm

(6.89 in)

225 mm

(8.86 in)

Sightglass Disc

d2

100 mm

125 mm

150 mm

175 mm

200 mm

250 mm

s

10 mm

10 mm

10 mm

10 mm

10 mm

10 mm

D

140 mm

(5.51 in)

165 mm

(6.50 in)

190 mm

(7.48 in)

215 mm

(8.46 in)

240 mm

(9.45 in)

290 mm

(11.42 in)

k

120 mm

125 mm

170 mm

195 mm

220 mm

270 mm

h1

10 mm

10 mm

10 mm

10 mm

10 mm

10 mm

h2

15 mm

(0.59 in)

15 mm

(0.59 in)

15 mm

(0.59 in)

15 mm

(0.59 in)

15 mm

(0.59 in)

15 mm

(0.59 in)

Securing Bolts
