MGP7000X meriGauge plus

Name: MGP7000X meriGauge plus
SKU: placeholder-mgp7000x-merigauge-plus
Price: 1472.50 CAD
Availability: InStock

The only modular gauge on the market, allows you to add only the pressure ranges you need to keep the cost low

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!

Call

The meriGauge® plus is a break-through digital pressure gauge with modular sensors. This new gauge is Meriam’s latest offering in the pressure measurement line. The meriGauge® plus is unique in that it features the capability to support detachable sensors to meet all of your range requirements.

This modular system allows you to purchase only the pressure ranges you need, for less than the cost of a stand-alone pressure gauge. To add to the efficiency of this gauge, the small sensors contain the calibration and they are easily exchanged for calibration so the gauge itself is never “out for calibration.”

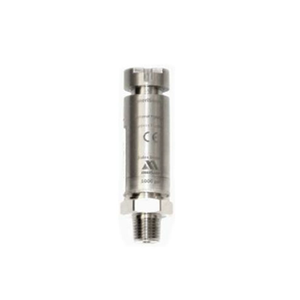

The meriSense sensors have been specifically designed to compliment this product and will be compatible with all of Meriam’s future measurement and calibration equipment. They are available in various types and ranges. The sensor label indicates the type of range. The meriSense sensors support 32 pressure units.

• Purchase a single gauge and add only the pressure ranges you need
• 22 interchangeable smart sensors available (15 PSI - 3000 PSI)
• Easy to use icon-based with simple buttons
• Portable or fixed installation, even in narrow spaces
• Easy to read crisp, digital readout even at a distance or in low light
• NIST traceable calibration

Display	6-digit main height, 17.8 mm (0.701 in) 10-character height, 7.65 mm (0.301 in) White LED backlight (3 intensities and O) Red (beacon) error backlight
Keyboard	5-dedicated keys, plus information key Intuitive, icon-based keys for internationalization
Materials	Powder coated T6 aluminum
Dimensions	120.7 mm x 167.3 mm x 40.1 mm (4.75 in x 6.59 in x 1.58 in)
Weight (With Batteries)	0.608 kg (1.34 lbs)
Battery Type	Four (4) 1.5 V AA alkaline
Battery Life	Approx. 350+ hrs (no backlight)
Communication	USB mini 2.0 compliant, for configuration, update, user calibration and data log
Storage	Data Log Pro*** provides a maximum 128 files or 100,000 data points Real-time clock calendar with 7 yr battery backup
Operating Temperature	-10°C - 50°C (14°F - 122°F)
Shock Condition	Tested to survive a 1 m (39.4 in) drop onto concrete
Ingress Protection	IP66
Environmental Protection	RoHS, WEEE
EMC Compatibility	For Handheld Class A device
meriSense Receptacle	Easy insertion/removal without tools Impossible to insert meriSense incorrectly Industrial stainless- steel release pin O-rings for alignment and vibration isolation Gold connection pins good for >1M cycles
Other Features	Modes: Min, Max, Accuracy, Tare, Average, Rate of change, DataLog Lite*, Ambient temperature/time Fully congurable via meriLink PC Software Update rate, 5 measurements/s
Approvals / Certifications	CE, ATEX
* meriLink configuration software is included with each meriGauge plus
** Data Log Lite is included with every meriGauge plus
*** Data Log Pro is an option you may purchase
