Bacharach

MGS-150 Refrigerant Detector

Built for the toughtest environments for real-time monitoring of refrigerants, oxygen, combustible and toxic gases

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
MGS 150 Refrigerant Detector 02759
MGS 150 2
MGS 150 3
MGS 150 4
MGS 150 5
MGS 150 6
MGS 150 7

The MGS-150 Gas Detector can meet almost any gas detection need with multiple sensor options for real-time monitoring of refrigerants, oxygen, combustible and toxic gases. It includes user-selectable current or volt analog outputs, allowing connectivity to most BMS, SCADA or central control systems. Status LEDs and a buzzer are integrated for local alarming while an onboard relay with user-adjustable set-point can connect to external visual/audible alarms.

A variety of enclosure options, including an economical IP41 housing and a dust/water tight IP66 housing, allow the MGS-150 transmitters to be placed in the toughest environments. Special remote sensor configurations are available for applications where mounting in vent pipes, duct work or other tight spaces is required.

• Infrared, electrochemical and MOS sensor options
• Detects CFC, HCFC, HFC, refrigerants, oxygen, toxic and combustible gases
• Selectable current or volt analog output
• IP66 housing options, including remote and duct mount sensors
• Built-in relay with adjustable set-point

TypeGas detector using IR, electrochemical or semiconductor sensors
GasesRefrigerants: Ammonia, Carbon Dioxide, Hydrocarbons, and HFCs, HCFCs, CFCs
Combustible gases: Methane, Propane, Butane, LPG, and Hydrogen
Toxic gases: Ammonia, Carbon Dioxide, Carbon Monoxide, Chlorine, Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Sulfide, Nitric Oxide, Nitrogen Dioxide, Ozone, Sulfur Dioxide, and Oxygen
Measuring Range *ppm, %LEL or Vol%
Status IndicatorsGreen and red LEDs
Analog Output4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V
Power Supply12/24 VDC or 24 VAC; 4-wire
Audible Alarm85 dB buzzer
Relay1 alarm relay, SPDT
Rating: 1 A @ 24 VDC / 24 VAC, resistive load
Alarm delay: 0, 1, 5, or 10 minutes; user-selectable
Ambient Conditions*Temperature: IP41 - 4 to +122 °F (- 20 to +50 °C); IP66 - 40 to +122 °F (- 40 to +50 °C)
Humidity: 0 to 95 %RH, non condensing
Altitude: 0 to 10,000 ft (3,050 m)
EnclosureEx d; Copper Free Aluminum
Size (w x h x d) Approx. *IP41: 3.35” x 5.59” x 2.09" (86 x 142 x 53 mm)
IP66: 6.89” x 6.5” x 3.29” (175 x 165 x 82 mm)
Ex d 5.51” x 7.09” x 3.54” (140 x 180 x 90 mm)
Weight Approx. *IP41: 6.3 oz (180 g)
IP66: 22 oz (629 g)
Ex d 9.3 lbs (2.2 kg)
ApprovalsCE, UL, CSA, IEC, EN 61010-1
* See datasheet for details

Made for the toughest environments, with two housing options depending on the environmental conditions:
• IP41: economical housing
• IP66: dust/water-tight housing

  • Thumbnail of document Data Sheet - MGS-150 Refrigerant Detector
    Download

    Data Sheet - MGS-150 Refrigerant Detector

    Download

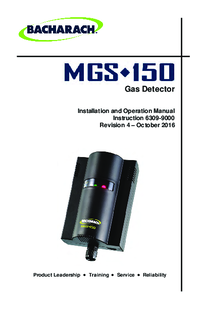

  • Thumbnail of document Manual - MGS-150 Refrigerant Detector
