MM Mini-Master Flowmeter

Name: MM Mini-Master Flowmeter
SKU: placeholder-mm-mini-master-flowmeter
Price: 67.13 CAD
Availability: InStock

2 in or 1-1/2 in scale with a configurable valve option suitable for both gas and liquid with advanced features at a low cost

Starting at

$67.13CAD

Have questions? We're here to help!

Call

Configure

Used in

The Series MM Mini-Master® Flowmeters consists of two series of flowmeters suitable for both gas and liquid applications with advanced features at a low cost. The Series MMA is a 2 in (51 mm) scale flowmeter that is user configurable with or without non-removable top or bottom front mounted metering valves. It is constructed from transparent nylon material providing high chemical resistance and is easily disassembled via the provided key for cleaning or reconfiguration. The Series MMF is a 1-1/2 in (38 mm) scale compact flowmeter ideal for measuring small volume air. It features bezel type mounting that can be quickly installed from the front of the instrument panel.

• Low installation costs with easy mounting
• Long operation life with durable construction
• Precision molding enables high repeatability
• White back on the flow tube allows for better visibility of the float increasing reading accuracy
• Side printed scale graduations allows for instantaneous flow reading saving time
• Compact bodies require minimal panel space freeing valuable space

Service	Compatible gases and liquids
Wetted Materials	MMA: Body: Nylon 12; O-rings: Buna-N (optional materials available); Float: Black glass, K monel, stainless steel, tungsten carbide MMF: Body: Styrene acrylonitrile; Float: SS, black glass, nylon; Valve: Polyurethane
Temperature Limit	MMA: 130°F (54°C) MMF: 125°F (51°C)
Pressure Limit	MMA: 100 PSI (6.9 Bar) with compression fitting. 50 PSI (3.4 Bar) with tubing clamp MMF: 50 PSI (3.4 Bar), Valve option: 10 PSI (0.6 Bar)
Accuracy	MMA: ± 4% FS MMF: ± 10% FS
Process Connection	MMA: 5/16" OD for push on rubber or plastic tubing with provided spring tubing clamp. Connect to rigid tubing with double compression fitting MMF: 1/4" OD for push on rubber or plastic tubing. Connect to rigid tubing with double compression fittings
Weight	MMA: 1 oz (28.35 g) MMF: 0.5 oz (14.17 g)
Agency Approvals	Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

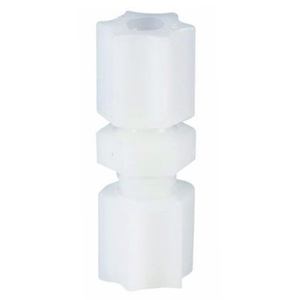

Accessories	MMA: A-327 MMF: A-328
