Monoxor Plus Carbon Monoxide Analyzer

Advanced CO and temperature monitor in ambient air or gas stacks

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!

The Monoxor® Plus is the perfect tool for home/safety inspectors, maintenance personnel and HVAC contractors who need to monitor CO in ambient air or stack gases. It has many advanced features, including a trending graph with real-time value displayed, minimum and maximum measured values, and ability to log a 15-minute CO ambient test.

The CO sensor is quickly replaced in the field without down time using B-Smart® pre-calibrated sensors. The Monoxor® Plus can also be used to measure ambient and flue gas temperatures, using optional thermocouple accessories. There’s even an available NOx filter to provide more accurate CO readings in flue gas applications.

• Measures ambient CO levels for safety and indoor air quality tests
• Measures CO flue gas directly from boilers, furnaces, or gas appliances
• Automatic CO alarm alerts technicians to potentially dangerous levels of CO
• View real-time CO readings in graphical or standard formats
• IrDA printer allows technicians to reproduce combustion and emissions reports in the field
• Dual thermocouples inputs for differential temperature capability
• Quick and easy sensor replacement in the field reduces downtime and doesn’t require calibration gas
MeasurementsCO: 0 to 2000 ppm
Temperature (optional) [1]: -4 to 1202 °F (-20 to 650 °C)
DisplayGraphic LCD w/backlight
Power4x AA batteries
Run Time20 hours minimum (alkaline batteries)
Size (H x W x D)8.0 x 3.6 x 2.3 in. (20.3 x 9.1 x 5.8 cm)
Weight1 lb. (0.45 kg) including batteries
Operating Conditions23 to 113 °F (-5 to 45 °C), 15 to 95% RH (non-condensing), 1 ATM ± 10%
Warm-up Time30 to 60 seconds
Memory10 locations
CommunicationsUSB 2.0 (mini-B), IrDA
ApprovalsCE mark
Warranty2 years (including sensor)
[1] Temperature measurement requires an optional probe (P/N 0019-7111) or thermocouple (P/N 0104-1797 or 0104-1798)
Sensors1
Measuring Range: 0 to 2000 ppm
Stack Temperature: -4 to 1202 °F (-20 to 650 °C) requires an optional probe (P/N 0019-7111) or thermocouple (P/N 0104-1797 or 0104-1798)
User Interface: Graphic LCD w/backlight
Power: 4 × Alkaline Batteries
Run Time: 20 Hours (Alkaline Batteries)
Warm-Up Time: 60 Seconds
Digital Communications: USB 2.0 (mini-B), IrDA
Product Dimensions (L×W×H): 8" × 3.6" × 2.3" (20.3 × 9.1 × 5.8 cm)
Product Weight: 1 lb. (0.45 kg) including batteries
Approvals: CE
Internal Memory: 10 Records
Warranty: 2 Years (Including Sensor)
Printer: IrDA + Bluetooth Printer (Optional)
  • Thumbnail of document Manual - Monoxor Plus Carbon Monoxide Analyzer
    Download

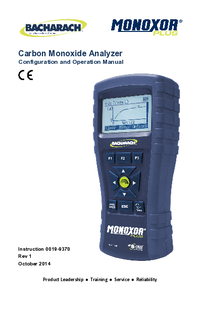

    Manual - Monoxor Plus Carbon Monoxide Analyzer

    Download
  • Thumbnail of document Data Sheet - Monoxor Plus Carbon Monoxide Analyzer
    Download

    Data Sheet - Monoxor Plus Carbon Monoxide Analyzer

    Download
