MRC 5000 Circular Chart Recorder

The Partlow MRC 5000 Circular Chart Recorder was designed with the latest innovations in recording technology, enclosures and functionality, the MRC 5000 is slim, trim and simple. The MRC 5000 is a digital circle chart recorder capable of measuring, recording and controlling up to two process variables from a variety of inputs.

The MRC 5000 is capable of measuring, recording, and controlling up to two process variables from a variety of inputs. Two basic versions of the MRC5000 are available for trend recording – one or two pens.

The straightforwardness of the Partlow circular chart recorder is immediately evident just by looking at the unit's face. The operator interface, a four-digit display with three-button keypad, is made for simple daily operation and easy configuration. The MRC5000's clear prompting scheme provides rapid access to all configuration and operation data.

The MRC 5000's operator interface also provides access to test and calibration facilities with a convenient dual function MODE switch. As if configuring the MRC 5000 wasn't easy enough, there's also an optional Configurator port for ultimate programming ease. Using the optional PC program, parameters can be modified, saved, and downloaded in seconds.

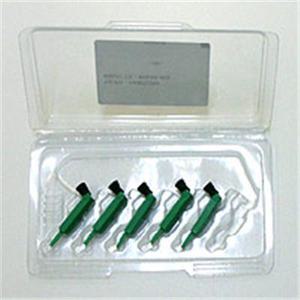

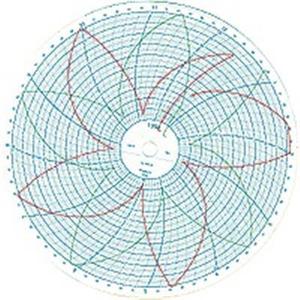

A quick look inside the casing and at the chart itself also speaks to the straightforward, functional design of the MRC 5000. You will find just one jumper to configure each port. The two pens, each with configurable spans, are positioned smoothly without any slidewire feedback; this simplifies design and improves reliability. In addition, the 10 inch chart rotates at the speeds you select.

Finding a place to install the MRC 5000 is easy, with its compact 2.5 inch panel depth and short 1.3 inch protrusion from the front panel. And, don't worry about harsh environments – the MRC 5000 comes standard with a NEMA 3 rating.
