OMEGA

OM-CP-PHTEMP2000 pH & Temp. Data Logger w/ LCD Display

pH and Temperature Data Logger with LCD Display

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
OM CP PHTEMP2000 p H Temp Data Logger w LCD Display 14126

 The OM-CP-PHTEMP2000 is a battery powered, stand alone pH and temperature data logger with an LCD. The OM-CP-PHTEMP2000 will directly connect to many commonly used pH, ORP and ISE electrodes through a female BNC connector mounted on its side. Temperature compensation is done automatically by connecting an RTD to the unit.


The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The OM-CP-PHTEMP2000 makes data retrieval quick and easy. Simply plug it into an empty com port and our user-friendly software does the rest.

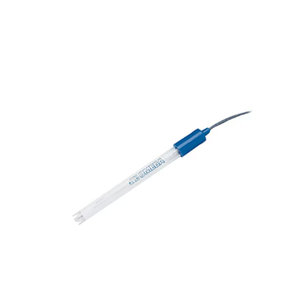

• Works with OMEGA™ PHE-4200 Series of pH Probes
• Real-Time Operation
• Programmable Engineering Units
• NIST Traceable Calibration
Temperature
Input100Ω Pt RTD
Measurement Range-40 to 110°C (-72 to 230°F, 80 to 145 Ω)
Resolution0.01°C (0.001 Ω)
Calibrated Accuracy±0.15°C @ 25°C ambient (±0.015 Ω)
Input ConnectionRemovable screw terminal; 2-, 3- or 4-wire interface
PH/ORP/ISE
Input ConnectionFemale BNC
Measurement Range-2.00 to 16.00 pH
Resolution0.01 pH (0.001 pH)
pH Accuracy±0.01 pH
pH EMI Susceptibility<0.2 pH @ 3V/M, 80 MHz to 1 GHz
ORP/ISE Accuracy±0.1 mV
ORP/ISE Susceptibility<10 mV @ 3V/M, 80 MHz to 1 GHz
Input Impedance1012 Ω typical
Start ModesSoftware programmable immediate start or delay start up to six months in advance
Real-Time RecordingMay be used with PC to monitor and record data in real time
DOT-MATRIX LCD
Dimensions35 H x 63 mm W (1.375 x 2.5')
TextConfigurable channel text size
IndicatorsPower, status, memory
BacklightConfigurable w/auto shut-off and contrast adjustment
Memory131,071 readings per channel
Reading Rate1 reading every 2 seconds to 1 every 24 hours
CalibrationDigital calibration through software
Battery Type9V lithium or alkaline battery (included); user replaceable
Battery Life1 year battery life at 1 minute reading rate with display off;
30 days typical with continuous display use; optional AC adaptor available
Data FormatDate and time stamped °C, °F, K, R, Ω pH, V, mV, engineering units specified through software
Time Accuracy±1 minute/month (at 25°C; RS-232 cable not in use)
Computer InterfacePC serial or USB (interface cable required); 115,200 baud
SoftwareXP SP3/Vista/7 and 8 (32-bit and 64-bit)
Operating Environment-5 to 50°C (23 to 122°F), 0 to 95% RH (non-condensing)
Dimensions84 H x 122 W x 32 mm D (3.3 x 4.8 x 1.25')
Weight440 g (16 oz)
  • Thumbnail of document Data Sheet - OM-CP-PHTEMP2000 pH & Temp. Data Logger w/ LCD Display
    Download

    Data Sheet - OM-CP-PHTEMP2000 pH & Temp. Data Logger w/ LCD Display

    Download
  • Thumbnail of document Manual - OM-CP-PHTEMP2000 pH & Temp. Data Logger w/ LCD Display
    Download

    Manual - OM-CP-PHTEMP2000 pH & Temp. Data Logger w/ LCD Display

    Download
