OS-1300-161 -30 to 1300°C, 16:1 Performance Infrared Thermometer
-30 to 1300°C, 16:1 FOV, Infrared Thermometer
Supported Applications
The Omega OS1300-Series is a non-contact handheld infrared thermometer designed for measuring surface temperatures of hot, hazardous, or hard-to-reach objects. The device features a backlit display and single laser sight to facilitate aiming in poor lighting conditions.
Operating Conditions & Performance

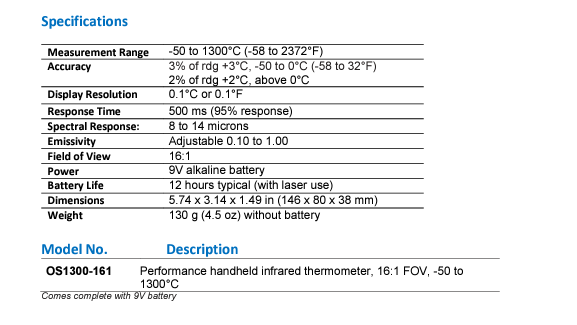

The series measures temperature from -50 to 1300°C (-58 to 2372°F) with an optical resolution (Field of View) of 16:1. Accuracy is specified as 3% of reading + 3°C for the range -50°C to 0°C (-58 to 32°F), and 2% of reading + 2°C above 0°C. The device offers a display resolution of 0.1°C or 0.1°F, with repeatability of 1% of reading or 1°C.
Performance characteristics include a response time of 500 ms (95% response) and a spectral response range of 8 to 14 μm. The unit operates on a 9V alkaline battery, with an estimated life of 12 hours typical when using the laser.
Environmental constraints include relative humidity ratings of 10 - 95% RH noncondensing and storage temperatures from -20 to 60°C (-4 to 140°F). The device requires protection from electro-magnetic fields (EMF) generated by arc welders and induction heaters. Additionally, thermal shock caused by large or abrupt ambient temperature changes necessitates a 30-minute stabilization period before use.
Configuration Options
The OS1300-Series is offered as the model OS1300-161, described as a performance handheld infrared thermometer with a 16:1 Field of View. The unit comes complete with a 9V battery.
• Measurement Range: -50 to 1300°C (-58 to 2372°F)
• Emissivity Adjustment: Adjustable from 0.10 to 1.00
• Data Functions: Min, max, average, and differential readings; high/low alarms
• Power Management: Auto-power off feature included
• Emissivity Reference Data: The series documentation includes an emissivity table for materials including Aluminum (0.30), Iron (0.70), Asbestos (0.95), Lead (0.50), Asphalt (0.95), Limestone (0.98), Basalt (0.70), Oil (0.94), Brass (0.50), Paint (0.93), Brick (0.90), Paper (0.95), Carbon (0.85), Plastic (0.95), Ceramic (0.95), Rubber (0.95), Concrete (0.95), Sand (0.90), Copper (0.95), Skin (0.98), Dirt (0.94), Snow (0.90), Frozen Food (0.90), Steel (0.80), Hot food (0.93), Textiles (0.94), Glass (plate) (0.85), Water (0.93), Ice (0.98), and Wood (0.94).
Key Product Differences
The series is represented by the single model OS1300-161, which defines the performance envelope for this product line. Physical dimensions are 5.74 x 3.14 x 1.49 in (146 x 80 x 38 mm), and weight is listed as 130 g without battery.
• -50 to 1300°C (-58 to 2372°F) temperature range
• 16:1 field of view
• Adjustable Emissivity: 0.10 to 1.00
• 500 ms response time
| Accuracy | ± 2 °C (± 3.6 °F) |
| Accuracy Detail | 3% of rdg +3°C, -50 to 0°C (-58 to 32°F) 2% of rdg +2°C, above 0°C |
| Alarm | High and Low |
| Battery life | 12 hr |
| Battery Size and Type | Alkaline 9V |
| Display Note | Large Backlit LCD Screen |
| Display Type | LCD |
| Emissivity, Max | 1 |
| Emissivity, Min | 0.1 |
| Emissivity Note | Adjustable 0.10 to 1.00 |
| Field of view | 30:1 |
| Form factor | Pistol Grip |
| Height | 146 mm |
| Laser | Single Laser |
| Length | 38 mm |
| Process Temperature, Min | -50 °C |
| Resolution | 0.1°C |
| Resolution Note | 0.1°C or 0.1°F |
| Response Time | 500 ms |
| Response Time Note | 500 ms (95% response) |
| Series ID | OS1300-Series |
| Spectral Response, Max | 14 µm |
| Weight | 130 g |
| Weight Note | 130 g (4.5 oz) without battery |
| Width | 80 mm |
