OS-303-121 -32 to 530°C, 12:1 Essential Infrared Thermometer
-32 to 530°C, 12:1 FOV, Infrared Thermometer
Supported Applications
The Omega OS303-Series is an essential infrared thermometer designed for non-contact surface temperature measurement. The series supports applications involving asphalt, oil, rubber, and concrete. It enables precise measurements of surfaces that are far away or at very high temperatures using a 12:1 distance-to-spot ratio.
Operating Conditions & Performance

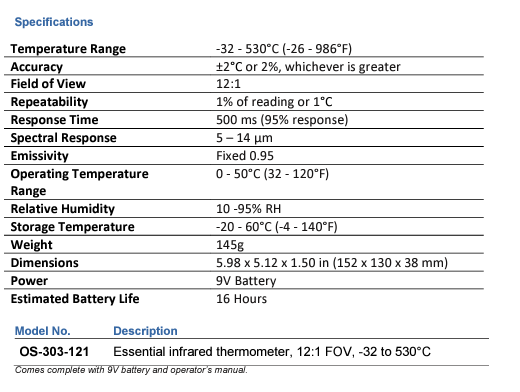

The OS303-Series measures surface temperatures from -32 to 530°C (-26 to 986°F) with an accuracy of ±2°C or 2%, whichever is greater. Repeatability is specified as 1% of reading or 1°C, and the response time is 500 ms (95% response). The device operates within an ambient temperature range of 0 - 50°C (32 - 120°F) and a relative humidity of 10 - 95% RH. Storage conditions are rated for -20 - 60°C (-4 - 140°F).
Performance is subject to specific environmental constraints: the unit should be protected from electro-magnetic fields (EMF) generated by arc welders and induction heaters. Additionally, thermal shock caused by large or abrupt ambient temperature changes may affect accuracy; a stabilization period of 30 minutes is required before use.
Configuration Options
The series features a fixed emissivity setting of 0.95 and utilizes a laser pointer for precise aiming. Power is supplied by a 9V battery with an estimated life of 16 hours. The device dimensions are 5.98 x 5.12 x 1.50 in (152 x 130 x 38 mm) and the weight is 145g.
Available model configurations include:
• OS-303-121: Essential infrared thermometer, 12:1 FOV, -32 to 530°C
Key Product Differences
The OS303-Series is offered as a single model family with the following documented specifications:
• Spectral Response: 5 – 14 µm
• Emissivity Table Support: The series documentation provides emissivity values for materials including Aluminum (0.30), Asphalt (0.95), Brick (0.90), Concrete (0.95), Copper (0.95), Frozen Food (0.90), Glass (plate) (0.85), Ice (0.98), Iron (0.70), Lead (0.50), Limestone (0.98), Oil (0.94), Paint (0.93), Paper (0.95), Plastic (0.95), Rubber (0.95), Sand (0.90), Skin (0.98), Steel (0.80), Textiles (0.94), Water (0.93), and Wood (0.94).
- -32 to 530°C (-26 to 986°F) temperature range
- 12:1 Field of View
- Fixed emissivity at 0.95
- 500 ms response time
| Accuracy | ± 2 °C (± 3.6 °F) |
| Accuracy Detail | ± 2°C or 2%, whichever is greater |
| Battery life | 16 hr |
| Battery Size and Type | Alkaline 9V |
| Display Note | Large Backlit LCD Screen with LED flashlight |
| Display Type | LCD |
| Emissivity, Max | 0.95 |
| Emissivity, Min | 0.95 |
| Emissivity Note | Fixed 0.95 |
| Field of view | 12:1 |
| Form factor | Pistol Grip |
| Height | 152 mm |
| Laser | Single Laser |
| Length | 38 mm |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Process Temperature, Min | -32 °C |
| Relative Humidity, Max | 0.95 |
| Relative Humidity, Min | 10% |
| Relative Humidity Note | 10 -95% RH |
| Repeatability | 0.01 |
| Repeatability Note | 1% of reading or 1°C |
| Response Time | 500 ms |
| Response Time Note | 500 ms (95% response) |
| Series ID | OS303-Series |
| Spectral Response, Max | 14 µm |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -20 °C |
| Weight | 145 g |
| Width | 130 mm |
