OS-310-501 -20 to 1650°C, 50:1 High Performance Infrared Thermometer
-20 to 1650°C, 50:1 FOV, Infrared Thermometer
Supported Applications
The Omega OS310-Series is a high-performance, handheld infrared thermometer designed for non-contact temperature measurement of metals, ceramics, and graphite. The series supports measurements across the range of -50 to 1650°C (-58 to 3002°F). It features an adjustable emissivity setting (0.10 to 1.00) to accommodate various surface materials.
Documented material applications include:
• Metallic surfaces: Aluminum, Brass, Copper, Iron, Lead, Steel
• Ceramics and minerals: Basalt, Brick, Carbon, Ceramic, Concrete, Limestone, Sand
• Organic and composite materials: Asbestos, Asphalt, Paint, Paper, Plastic, Rubber, Textiles, Wood
• Liquids and other media: Oil, Water, Frozen Food, Hot food, Ice, Skin, Snow
Operating Conditions & Performance
The OS310-Series operates within an ambient temperature range of 0 - 40°C (32 - 104°F) and relative humidity from 10% to 95% non-condensing. Storage is supported between -20 - 50°C (-4 - 122°F). The device utilizes a spectral response of 8 – 14 µm with a field of view ratio of 50:1.
Performance specifications are defined by temperature range:
• -50 to 0°C (-58 to 32°F): Accuracy ±3°C (±5°F)
• 0 to 1650°C (32 to 3002°F): Accuracy ±1.5% or 1.5°C (±2.7°F), whichever is better
The thermometer provides a resolution of 0.1°C or 0.1°F and achieves response times less than 250 ms. Repeatability is specified as less than 1/3 of basic error.
Configuration Options
The series includes the OS-310-501 model, a handheld unit powered by an included 9V battery. The device features a backlit LCD display that shows current temperature as well as minimum, maximum, average, and differential temperatures.
• Target Aiming: Single laser dot for target location
• Emissivity Adjustment: Configurable from 0.1 to 1.0 (or 0.10 to 1.00)
• Alarm Settings: Available on the unit
• Housing and Weight: Dimensions of 5.6 x 7.9 x 2.4 in (141 x 200 x 60 mm); weight is 270 g (9.5 oz) including battery
The unit ships complete with a hard case and manual.
Key Product Differences
The OS310-Series is represented by the single model number OS-310-501, described as a Handheld Infrared Thermometer with a 50:1 Field of View covering -50 to 1650°C. No alternative housings, output signal types, or sensor element variations are documented for this series.
- -50 to 1650°C (-58 to 3002°F) temperature range
- 50:1 Field of View
- Adjustable Emissivity: 0.10 to 1.00
- 250 ms response time

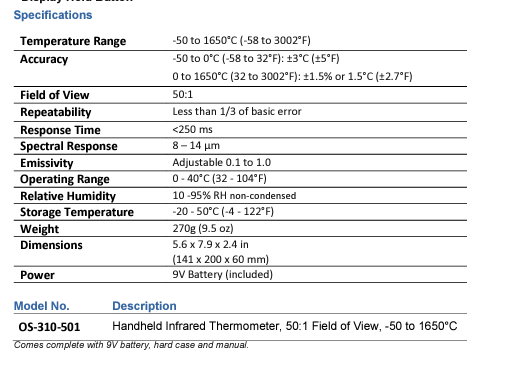

| Accuracy | ± 1.5 °C (± 2.7 °F) |
| Accuracy Detail | -50 to 0°C (-58 to 32°F): ± 3°C (± 5°F) 0 to 1650°C (32 to 3002°F): ± 1.5% or 1.5°C (± 2.7°F) |
| Alarm | High and Low |
| Battery Size and Type | Alkaline 9V |
| Display Type | LCD |
| Emissivity, Max | 1 |
| Emissivity, Min | 0.1 |
| Field of view | 50:1 |
| Form factor | Pistol Grip |
| Height | 200 mm |
| Laser | Dot |
| Length | 60 mm |
| Operating Temperature, Max | 40 °C |
| Operating Temperature, Min | 0 °C |
| Process Temperature, Min | -50 °C |
| Relative Humidity, Max | 0.95 |
| Relative Humidity, Min | 10% |
| Relative Humidity Note | 10 -95% RH non-condensed |
| Repeatability | <1/3 |
| Repeatability Note | Less than 1/3 of basic error |
| Response Time | <250 ms |
| Series ID | OS310-Series |
| Spectral Response, Max | 14 µm |
| Storage Temperature, Max | 50 °C |
| Storage Temperature, Min | -20 °C |
| Weight | 270 g |
| Width | 141 mm |
