OS-AE11 Compact IR Sensor w/Adjustable Emissivity 6 Digit LCD

Compact Fixed IR Sensor with Adjustable Emissivity and Display

Normally ships in
3-4 weeks
Have questions? We're here to help!
Have questions? We're here to help!

Supported Applications

The Omega OSAE-Series is a compact fixed infrared temperature sensor designed for non-contact surface temperature measurement. The series calculates object temperature based on emitted infrared energy and converts it into an analog signal or digital display reading.

• Surface temperature monitoring of objects within the 0°C ~ 500°C range

Operating Conditions & Performance

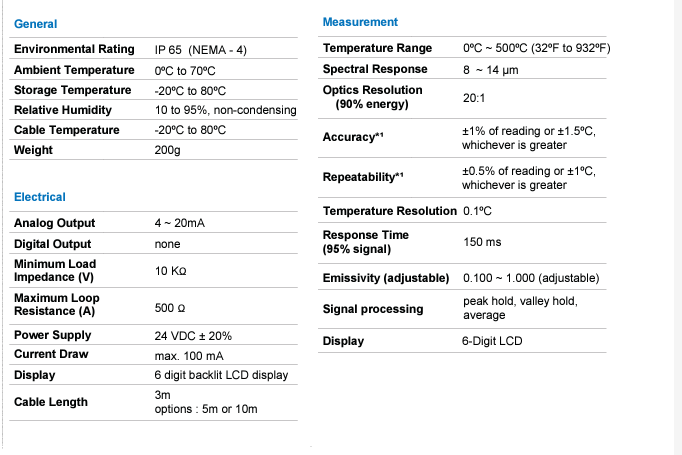

The OSAE-Series operates with a measurement range of 0°C ~ 500°C (32°F to 932°F) and features an adjustable emissivity setting from 0.100 ~ 1.000. The sensor utilizes a spectral response of 8 ~ 14 μm with an optics resolution of D:S = 20:1 (90% energy). Performance specifications include an accuracy of ±1% of reading or ±1.5°C, whichever is greater, and repeatability of ±0.5% of reading or ±1°C, whichever is greater.

• Response Time: 150 ms (95%)
• Ambient Temperature: 0°C ~ 70°C
• Storage Temperature: -20°C to 80°C
• Relative Humidity: 10% ~ 95%, non-condensing

Safety and Environmental Ratings

The electronics are housed in an aluminum alloy (A6061) enclosure rated IP 65 (NEMA-4). The series includes a caution that the product is not intended for medical use or human applications.

Configuration Options

• Housing and Mounting: Aluminum alloy body with M20x1 process connection. Standard configuration includes 3m cable length; options available for 5m or 10m cables. Accessories include the OS-FMB Flange Mount Bracket and OS-AMB Angle Mount Bracket.
• Display and Interface: Features a 6-digit backlit LCD display with temperature resolution of 0.1°C. The unit supports °C / °F selection via setup parameters.
• Analog Output Configuration: Provides a 4~20mA analog output signal. Electrical specifications require a minimum load impedance of 10 KΩ (V) and allow a maximum loop resistance of 500 Ω (I).
• Signal Processing Options: Configurable via the sensor setup table for Signal Output Average, Peak Hold, Valley Hold, Advanced Peak Hold, Lower Limit signal output [0V / 4mA], and Upper Limit signal output [5V / 20mA].

Power Requirements

The series requires a power supply of 24 VDC ±20% with a current draw of less than 100 mA.

Key Product Differences

The OSAE-Series is represented by the OS-AE11 model family. The primary variation within the documented series involves cable length options (3m standard, or configurable to 5m and 10m) and mounting accessories (Flange Mount Bracket vs. Angle Mount Bracket). All units share the same core measurement technology, IP65/NEMA-4 enclosure rating, and adjustable emissivity range.

  • Easily see temperature with 6 digit backlit LCD display
  • Simultaneous analog and digital outputs
  • Rated IP 65 (NEMA-4) for protection against dust and water projected from a nozzle
  • Adjustable emissivity for different surface measurments



Accuracy Detail± 1% of reading or ± 1.5ºC, whichever is greater
Additional Features 1Fixed Mounting Bracket, Adjustable Mounting Bracket
Approvalsasd
Cable Length3 m
Current Draw100 mA
DisplayYes
Emissivity, Max1
Emissivity, Min0.1
Emissivity Note0.100 ~ 1.000 (adjustable)
Enclosure RatingsIP65, NEMA Type 4
Housing MaterialAluminum
Impedance10 kΩ
Intrisically SafeNo
Laser ClassificationClass 2
Laser Outputfalse
Loop Resistance, Max500 Ω
Operating Temperature, Max70 °C
Operating Temperature, Min0 °C
Optics20:1
Output SignalCurrent
Process Temperature, Min0 °C
Relative Humidity, Max95%
Relative Humidity, Min10%
Repeatability± 0.5%
Repeatability Note± 0.5% of reading or ± 1ºC, whichever is greater
Response Time150 ms
Series IDOSAE-Series
Spectral Response, Max14 μm
Spectral Response, Min8 μm
Storage Temperature, Max80 °C
Storage Temperature, Min-20 °C
Supply Power Note24 VDC ± 20%
Supply Voltage24 Vdc
Temperature Resolution0.1 °C
Weight200 g
