OS523E-1-SC Tripod Mount Handheld IR Thermometer -23°C to 2482°C

High-Temperature Handheld Infrared Thermometer with Optional Sighting Scope and Distance Measurement

This product is no longer available. Contact us at 800-567-8686 for alternative solutions.

Have questions? We're here to help!
Have questions? We're here to help!

 With their powerful  features, the portable and  rugged high-temperature  OS523E/524E Series  infrared thermometers offer  solutions for many non- contact temperature  measurement applications.  Their emissivity, adjustable in  0.01 increments, allows them to measure a variety of surfaces.  A custom backlit LCD features dual  digital display of the current and max, min, difference, or average temperatures simultaneously. Standard  features include high and low audible and visual alarms, 1 mV/degree analog output, RS232 output, and temperature data storage.

• High Performance Rugged Design
• Available with Temperature Ranges to 2482°C (4500°F)
• Built-In Laser Sighting Dot/Circle Switchable
• Emissivity Adjustable from 0.1 to 1.00 in 0.01 Steps
• Distance-Measuring Option, Field-Mountable or Built-In [0.9 to 9 m (3 to 30') Range]
• Custom LCD (Current with Min, Max, Average, or Differential Temperatures)
• °C/°F Selectable
• 1 mV/Degree Analog Output Standard (0.5 mV/ Degree on OS524E)
• RS232 Output with Free Data Logging Software
• Ambient Target Temperature Compensation
• Audible and Visible Alarms
• Integral Tripod Mount
• Electronic Trigger Lock
• Last Temperature Recall
• Data Storage for Up to 800 Temperature Points
• Distance-Measuring Option Available
Accuracy±1% rdg or 2°C (3.6°F), whichever is greater
Repeatability±(1% rdg + 1 digit)
Resolution1°C or 1°F
Response Time100 ms
Spectral Response
OS523E8 to 14 microns
OS524E2 to 2.5 microns
Dimensions
Without Sighting Scope218 H x 168 D x 51 mm W (8.6 x 6.6 x 2")
With Sighting Scope218 H x 218 D x 51 mm W (8.6 x 8.6 x 2")
Emissivity0.10 to 1.00 in 0.01 increments
Operating Temperature0 to 50°C (32 to 122°F)
Power4 “AA” lithium batteries (2 sets included) or optional AC adaptor
Battery Life14 days, lithium; 80 hours, alkaline
Tripod Mount1⁄4 to 20 UNC
DisplayBacklit LCD; displays current and min or max, differential, average temperatures simultaneously
AlarmHigh and low alarm standard, with audible and visual indication
RS2322-way communications
  • Thumbnail of document Data Sheet - OS523E-1-SC Tripod Mount Handheld IR Thermometer -23°C to 2482°C
    Download

    Data Sheet - OS523E-1-SC Tripod Mount Handheld IR Thermometer -23°C to 2482°C

    Download

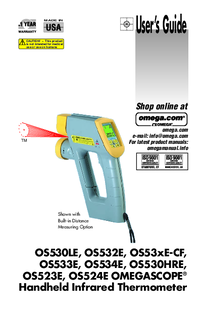

  • Thumbnail of document Manual - OS523E-1-SC Tripod Mount Handheld IR Thermometer -23°C to 2482°C
