OS543 -30°C to 550°C Infrared Thermometer with Fixed Emissivity

Infrared Thermometer

Normally ships in
3-4 weeks
Have questions? We're here to help!
Have questions? We're here to help!

Supported Applications

The OS543 is a handheld, non-contact infrared thermometer built for production and general maintenance work. Its built-in laser dot marks the target so an operator can read the surface temperature of equipment, process surfaces, and materials the instant the trigger is pulled, with simple one-hand operation and no physical contact.

Because the instrument is portable, compact, and covers a wide span from below freezing to elevated process temperatures, it suits spot checks on motors, bearings, ducting, electrical panels, and general plant maintenance where a quick surface reading is needed. A Hold function retains the last reading so a value can be recorded after the target is out of view.

Operating Conditions & Performance

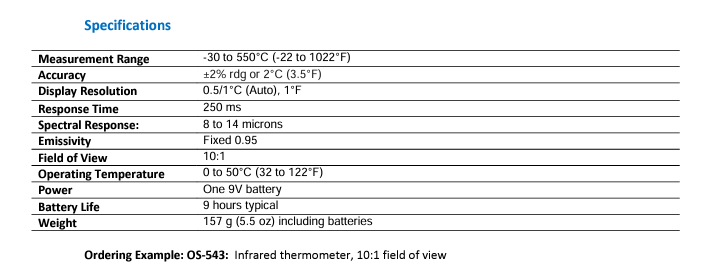

Performance figures for the OS543 are drawn directly from its specification table:

• Measurement range: -30 to 550°C (-22 to 1022°F)
• Accuracy: ±2% rdg or 2°C (3.5°F)
• Display resolution: 0.5/1°C (Auto), 1°F
• Response time: 250 ms
• Spectral response: 8 to 14 microns
• Field of view: 10:1
• Emissivity: fixed 0.95
• Operating temperature: 0 to 50°C (32 to 122°F)
• Power: one 9V battery, with 9 hours of continuous use
• Weight: 157 g (5.5 oz) including batteries

An auto-off feature conserves the battery, a low-battery indicator flags when the cell needs replacement, and both the laser and the backlight turn on during measurement so the target and the backlit LCD stay visible in low light.

Configuration Options

Within the OS540 documentation the OS543 is the primary configuration. It carries a fixed 0.95 emissivity, a 10:1 field of view, and a response time of 250 ms, and it resolves temperature at 0.5/1°C (Auto) and 1°F across a -30 to 550°C (-22 to 1022°F) span.

The related OS542 handheld documented alongside it differs in several respects: it uses a fixed emissivity of 0.98, an 8:1 field of view, a 0.5 second response time, and a narrower -20 to 500°C (-4 to 932°F) range, and its 4-digit LCD carries automatic power-off after 10 seconds. Both instruments share single-point trigger operation and a laser spot target indicator.

Key Product Differences

The OS540 series is ordered as a single infrared thermometer model:

• OS543 — infrared thermometer with a 10:1 field of view, fixed 0.95 emissivity, and a -30 to 550°C (-22 to 1022°F) range.

The model is specified simply as OS-543, with no output, calibration, or enclosure options to configure. The companion family manual additionally documents the OS542 instrument, which shares the same handheld, laser-sighted platform.

  • Circle or Dot Laser Sighting
  • Temperature Range: OS542: -20 to 500°C (-4 to 932°F), OS543: -30 to 550°C (-22 to 1022°F)
  • Repeatability: ± 1°C
  • Emissivity: 0.95 Fixed



Accuracy± 2 °C (± 3.6 °F)
Accuracy Detail± 2% rdg or 2°C (3.5°F)
Battery life9 hr
Battery Size and TypeAlkaline 9V
Display NoteLarge Backlit LCD Screen with LED flashlight
Display TypeLCD
Emissivity, Max0.95
Emissivity, Min0.95
Emissivity NoteFixed 0.95
Field of view10:1
Form factorPistol Grip
LaserDot
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Process Temperature, Min-30 °C
Resolution0.5°C
Resolution Note0.5/1°C (Auto), 1°F
Response Time250 ms
Series IDOS540
Spectral Response, Max14 µm
Weight157 g
Weight Note157 g (5.5 oz) including batteries
