OS561 -60°C to 500°C Infrared Thermometer with Long Battery Life
Low Cost Infrared Thermometer | OMEGA
Supported Applications
The OS561 is an economical, handheld non-contact infrared thermometer for industrial and general-purpose surface temperature measurement. A built-in circle/dot laser marks the spot being measured, and two-key operation lets an operator aim and read a surface temperature instantly without contact. Surface temperature is shown on a backlit LCD.
Its wide low-to-mid range and long battery life make it well suited to plant maintenance, HVAC and refrigeration checks, and field work away from power. A Max function displays the highest reading captured during a session and a Hold mode freezes a reading so it can be noted after the target is out of view.
Operating Conditions & Performance

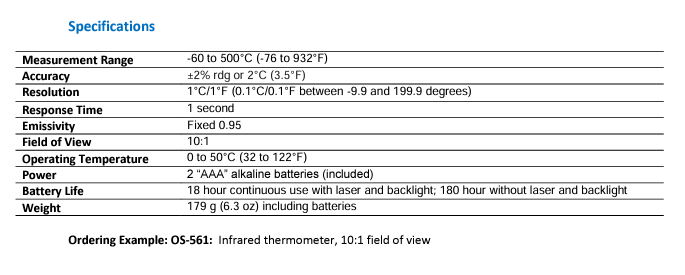

Key performance figures are taken from the OS561 specification table:
• Measurement range: -60 to 500°C (-76 to 932°F)
• Accuracy: ±2% rdg or 2°C (3.5°F); ±1.0°C (1.8°F) when Tobj=15~35°C and Tamb=25°C
• Resolution: 1°C/1°F, improving to 0.1°C/0.1°F between -9.9 and 199.9 degrees
• Response time: 1 second (90% of final value)
• Emissivity: fixed 0.95
• Field of view: 10:1
• Operating temperature: 0 to 50°C (32 to 122°F)
• Storage temperature: -20 to 65°C (-4 to 149°F)
• Power: two AAA 1.5 V alkaline batteries (included)
• Battery life: 18 hours of continuous use with laser and backlight, and 180 hours without them
• Weight: 179 g (6.3 oz) including batteries
• Dimensions: 175.2 x 39.0 x 71.9 mm (6.9 x 1.53 x 2.8 in)
The built-in laser is a Class II laser certified to EN60825-1, and the instrument carries CE marking and ISO 9001 certification.
Configuration Options
The OS561-Series is supplied as a single fixed configuration rather than a set of optioned models, so its capabilities are built in rather than selected:
• Emissivity is fixed at 0.95 and is not adjustable.
• The field of view is fixed at 10:1, with circle/dot laser sighting that is active while measuring.
• Readings can be switched between °C and °F, and the backlight stays on for low-light use.
• Resolution auto-switches to 0.1°C/0.1°F between -9.9 and 199.9 degrees and is 1°C/1°F elsewhere.
• Auto power-off is fixed at 15 seconds to preserve battery life.
Battery life itself distinguishes how the unit is used: 18 hours of continuous operation with the laser and backlight active, extending to 180 hours when both are off.
Key Product Differences
The series consists of a single handheld model:
• OS561 — non-contact infrared thermometer with a 10:1 field of view, fixed 0.95 emissivity, and a -60 to 500°C (-76 to 932°F) range.
The model is ordered simply as OS-561, with no separate output, range, or enclosure options to configure.
- Fixed 0.95 Emissivity
- 10:1 Field of View
- Long Battery Life
- Large Backlit LCD Screen
| Accuracy | ± 2 °C (± 3.6 °F) |
| Accuracy Detail | ± 2% rdg or 2°C (3.5°F) |
| Battery life | up to 180 hr |
| Battery Size and Type | Alkaline AAA |
| Display Note | Large Backlit LCD Screen with LED flashlight |
| Display Type | LCD |
| Emissivity, Max | 0.95 |
| Emissivity, Min | 0.95 |
| Emissivity Note | Fixed 0.95 |
| Field of view | 10:1 |
| Form factor | Pistol Grip |
| Laser | Dot, Circle |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Process Temperature, Min | -60 °C |
| Resolution | 1°C |
| Resolution Note | 1°C/1°F (0.1°C/0.1°F between -9.9 and 199.9 degrees) |
| Response Time | 1 sec |
| Series ID | OS561-Series |
| Weight | 179 g |
| Weight Note | 179 g (6.3 oz) including batteries |
