Setra Systems
Particle Counter SPC3510
Particle counter monitors 2 or 4 user-selectable size channels to allow for continuous monitoring

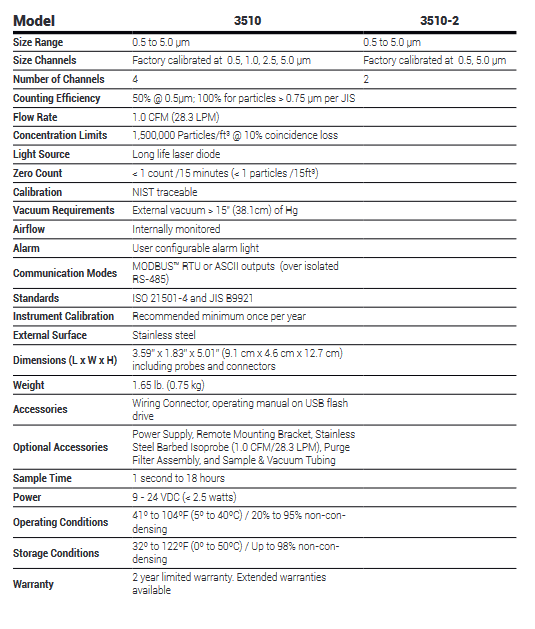

The Setra 3510 and 3510-2 particle counters provide a range of particle size measurement from 0.5 to 5.0 μm at a flow rate of 1.0 CFM (28.3 LPM). These sensors allow for efficient particle counting with specifications that exceed the ISO 31501-4 and JIS B9921 calibration standards.
These sensors have both 4 and 2 fixed particle size channels and are equipped with an integral critical orifice and flow sensor to provide a stable flow rate from an external vacuum source. Integration into a building automation or facility monitoring system is easy via isolated RS- 485 Modbus communication
• 3510: Measures 0.5 μm to 5.0 μm (up to 4 size channels)
• 3510-2: Measures 0.5 μm to 5.0 μm (up to 2 size channels)
• 1.0 CFM (28.3 LPM) flow rate• Long life laser diode technology
• Measures up to 4 channels of simultaneous data
• Particle concentrations up to 1,500,000 Particles/ft³ @ 10% coincidence loss
• Internal critical orifice
• Connect using Modbus RTU/ASCII over isolated RS-485
• Complies with ISO 21501-4 and JIS B9921 standards
• Easy to clean and wipe down with minimal particle traps
• Versatile mounting options
• User configurable alarm light
• LED Indicators
• Seamless integration into a facility monitoring system
• Lightweight stainless steel enclosure
• 2 year warranty. Extended warranties available
