For OEM use, Omega’s solderable PCC connector provides a means to attach thermocouple probes to printed circuit boards. For our uncompensated “U” version, Omega now incorporates beryllium copper alloy, which is stronger than copper, and increases the connector’s durability and reliability in connecting time after time. Omega offers a “vertical” version of this connector for special applications. The PCC connector series is also available with an optional transistor retainer clip, which accepts TO-92 style transistors for cold junction temperature measurements at connector entrance. For CE applications, Omega offers a “closedend” version of this connector. The suffix “-CE” should be added to the model number.
• OEM design for production use
• Beryllium copper alloy material (for uncompensated version) for strength and durability
• OEM design for production use
• Attached directly to circuit board; mounting clip included with each connector
• Compact design, ideal for handheld meter production

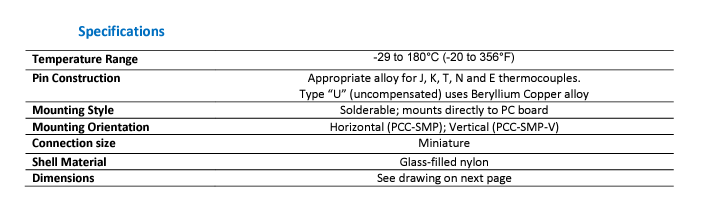

• Temperature rating -29 to 180°C (-20 to 356°F) J, K, T, E, N and U (Beryllium Copper) Calibrations
• Custom units designed for ‘closed end’ requirements for “CE” requirements
• Sold in packs of 5, 50 and 100
