Precision Digital

PD2-6363 Helios Dual Pulse Input Flow Rate/Totalizer

Displays two pulse flowmeter inputs on one meter, performs a variety of math functions

Starting at
$2,118.00CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
PD2 6363 Helios Dual Pulse Input Flow Rate Totalizer 00783
Helios with USB hookup
PD2 6363 left
PD2 6363 right

What sets the Helios apart from other Large Display Meters is its dual line display with super bright LEDs that can be read even in bright sunlight and up to 100 feet away. Based on Precision Digital's popular line of ProVu® digital panel meters, the Helios can satisfy a wide variety of level, flow, temperature, pressure, & weight applications. It is available with models that accept 4-20 mA, thermocouple, RTD, pulse, strain gauge, AC and DC volts and current, and even Modbus®.

Go with the Helios PD2-6363 when you want to display two pulse flowmeter inputs on one meter you can see from a distance. Both of these inputs can be displayed on six full digits and each flowmeter is provided with its own DC power supply. The PD2-6363 can also perform a variety of math functions on those two inputs, such as computing the difference between them or summing them together. One application for the PD6363 is determining fuel consumption by computing the difference between two flowmeter inputs.

Input

Two (2) Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave




Helios Features

• Large 1.80" Digits
• Dual Line Display
• Six Full Digits on Each Line
• Readable From 100 Feet Away
• Superluminous Sunlight Readable Display
• IP65 Rated Field Mountable Enclosure
• Great for Outdoor Use: -40 to 150°F (-40 to 65°C)
• Program the Meter from a PC with Onboard USB and MeterView® Pro

PD2-6363 Features

• Displays Two Flow Inputs Simultaneously
• Displays Rate and Total Simultaneously
• Math Functions Capabilities
• 5, 10, or 24 V Flowmeter Power Supply
• Count Up or Down, Total & Grand Total
• Gate Function for Rate Display of Slow Pulse Rates
• K-Factor, Internal Scaling, or External Calibration
• Non-Resettable Grand Total
• 32-Point Linearization
• On-Board Digital Input (for Remote Reset)
• Can Convert Pulse Input to an Isolated 4-20 mA Output

Under RangeDisplay flashes -99999
Display AssignmentThe Upper and Lower displays may be assigned to show:
•One or more rate channels: Channel A (Ch-A), B (Ch-B), or C (Ch-C)
•Toggle between rate channels: Ch-A & Ch-B, Ch-A & Ch-C, Ch-B & Ch-C, and Ch-A, Ch-B, & Ch-C
•Total or grand total: Ch-A or Ch-B
•Rate and total or grand total: Ch-A, Ch-B
•Relay set points
•Max and/or min values: Ch-A, Ch-B, or Ch-C
•Toggle between any rate channel & units
•Total and units: Ch-A or Ch-B
•Toggle between totals: Ch-A & Ch-B; Ch-A, Ch-B, and sum of Ch-A and Ch-B
•Modbus input
The lower display may also be set to show engineering units or be off, with no display.
Programming MethodsFour programming buttons, digital inputs, PC and MeterView Pro software, or Modbus registers.
DisplayTwo lines with 1.8" (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking
Display IntensityEight user selectable intensity levels
Display Update Rate5/second (200 ms)
Over RangeDisplay flashes 999999
Noise FilterProgrammable from 2 to 199 (0 will disable filter)
Filter BypassProgrammable from 0.1 to 99.9% of calibrated span
RecalibrationAll ranges are calibrated at the factory. Recalibration is recommended at least every 12 months
Max/Min DisplayMax/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
PasswordThree programmable passwords restrict modification of programmed settings.
Pass 1: Allows use of function keys and digital inputs
Pass 2: Allows use of function keys, digital inputs and editing set/reset points
Pass 3: Restricts all programming, function keys, and digital inputs.
Power Options85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC ± 10%, 15 W max. Powered over USB for configuration only.
Isolated Transmitter Power SupplyTerminals P+ & P-: 24 VDC ± 10%. 12-24 VDC powered models selectable for 24, 10, or 5 VDC supply (internal P+/P- switch). 85-265 VAC models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply.
Non-Volatile MemoryAll programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
FuseRequired external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse
Normal Mode RejectionGreater than 60 dB at 50/60 Hz
Isolation4 kV input/output-to-power line; 500 V input-to-output or output-to-P+ supply
Overvoltage CategoryInstallation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.
EnvironmentalOperating temperature range: -40 to 150°F (-40 to 65°C); Storage temperature range: -40 to 185°F (-40 to 85°C); Relative humidity: 0 to 90% non-condensing
ConnectionsRemovable and integrated screw terminal blocks accept 12 to 22 AWG wire.

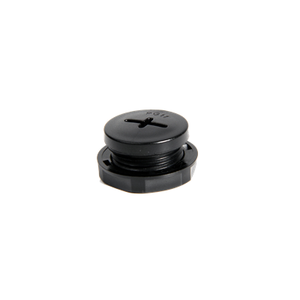

EnclosureIP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.
Wall MountingFour (4) mounting holes provided for mounting meter to wall
Pipe MountingOptional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately.
See PD2-6363 manual for instructions.
Tightening TorqueRemovable Screw Terminals: 5 lb-in (0.56 Nm)
Digital I/O and RS485 Terminals2.2 lb-in (0.25 Nm)
Overall Dimensions (H x W x D)10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm)
Weight6.10 lbs (2.76 kg)
USB ConnectionCompatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle Cable: USB A Male to Micro-B Cable Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit Power: USB Port
Warranty3 years parts & labor
