PD655 Plastic NEMA 4X Process Meter
1.0" display, analog input process meter with flow rate/totalizer and batch control capabilities
This product is no longer available. Contact us at 800-567-8686 for alternative solutions.
The PD655 is a large display, analog input process meter with flow rate/totalizer and batch control capabilities housed in a rugged, impact-resistant, glass-filled, polycarbonate NEMA 4X enclosure. Each accepts the common process signals such as 4-20 mA, 0-5 VDC, 1-5 VDC and 0-10 VDC and displays these signals in engineering units on a large, high efficiency, 4 1/2 digit LED display. The meter also provide two isolated 24 V power supplies to drive both the input and output loops. Options include up to 4 relays for alarm or batch control and an isolated 4-20 mA transmitter output.
• 4-20 mA, 1-5 V, 0-5 V, 0-10 V inputs
• 4½ digit + extra zero display for rate
• 6 digit display for total
• Programmable exponent for weirs & flumes
• Pump alternation control
• Two 24 VDC transmitter power supplies
• 200 mA transmitter power supply option
• 2 or 4 relays & 4-20 mA output options
• 115 VAC or 230 VAC power
• Operating temperature: -20 to 65°C
• Pump Alternation (PD655 & PD656 Only)
• Built-in snubbers on each relay contact
• Any set point programmable for process/rate or total
Accessories
![PDA6545 Pipe Mounting Kit 00823]()

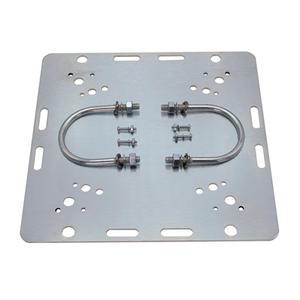

Precision DigitalPDA6545 Pipe Mounting Kit
Large 2" pipe mounting kit
Starting at$182.40 CADNormally ships in 1-2 weeks
Precision DigitalPDA6554 Panel Mounting Kit
Panel mounting kit for PD655
This product is no longer available. Contact us at 800-567-8686 for alternative solutions.
