Precision Digital

PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter

Economical loop-powered meter, approved for hazardous areas, optional backlight feature

Starting at
$538.50CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
PD663 Prot EX Lite Explosion Proof Loop Powered Meter 00741
The ProtEX-Lite PD663 is a loop-powered field meter housed in an IP68, aluminum enclosure that is FM Approved and CSA Certified as Explosion-Proof, Dust-Ignition Proof, and Flame-Proof, and ATEX & IECEx Certified as Flame-Proof.

The PD663-SS is the stainless steel version of the ProtEX-Lite that is CSA Certified as Explosion-Proof, Dust-Ignition Proof, and Flame-Proof.

Both the PD663 and PD663-SS are easy to install and program, and they can be seen in a variety of lighting conditions, even in bright sunlight. The ProtEX-Lite meters will operate down to -40°C and the PD663-SS stainless steel version can be installed in areas where the temperature gets as cold as -55°C, however, the display will cease functioning.

The fact that these meters are loop-powered means that there is no need to run additional, costly power lines into a hazardous area. The meters get all the power they need from the 4-20 mA loop and their 1.7 V drop results in a minimal burden on the loop. Loop-powered backlighting is a standard feature that allows the meters to be read in dimly lit areas. The meters feature a wide -40 to 75°C operating temperature range and are available with two 1/2" NPT or M20 threaded conduit openings and flanges for wall or pipe mounting. Calibration is a quick process involving the four internal pushbuttons. The 3½+ digits display on the ProtEX-Lite will read up to 2999.



• Fully-Approved Explosion-Proof Loop-Powered Meter
• 4-20 mA Input with ±0.05% Accuracy of Calibrated Span
• 1.7 Volt Drop (4.7 Volt Drop with Backlight)
• Easy Field Scaling in Engineering Units without a Calibrator
• 0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
• Display Mountable at 0°, 90°, 180°, & 270°
• HART® Protocol Transparent
• Loop-Powered Backlight Option
• Operating Temperature Range: -40 to 75°C (-40 to 167°F)
• Four Internal Buttons for Easy Field Scaling
• Max/Min Display
• Programmable Noise Filter
• 32-Point Linearization & Square Root Extraction
• FM Approved as Explosion-Proof / Dust-Ignition Proof / Flame-Proof
• CSA Certified as Explosion-Proof / Dust-Ignition Proof / Flame-Proof
• ATEX and IECEx Certified as Flame-Proof and Protection by Enclosure
• Conformal Coated PCBs for Dust and Humidity Protection
• Flanges for Wall or Pipe Mounting
• Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum Enclosure
• Two ½" NPT Threaded Conduit Openings (One Plug Installed)

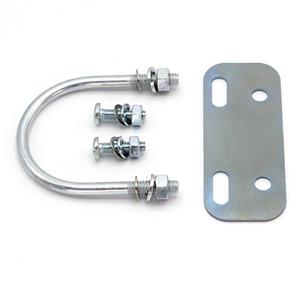

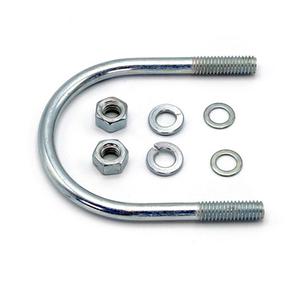

• 1.5" U-Bolt Kit & 2" Pipe Mounting Kits Available
• Stainless Steel Tag Available
• 3-Year Warranty
Display0.6" (15.24 mm) LCD, 3½+ digits; -1999 to 2999
Display Update Rate2 Updates/Second
Display OrientationDisplay may be mounted at 90° increments up to 270° from default orientation.
Over RangeDisplay Flashes 2999
Under RangeDisplay Flashes -1999
Programming Method4 Front Panel Pushbuttons (behind glass). Magnet may also be used for programming; P/N PDA-MAG.
Noise FilterProgrammable HI, LOW, or OFF
RecalibrationRecalibration is recommended at least every 12 months.
Max/Min DisplayMax/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
Non-Volatile MemoryAll programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.
Normal Mode Rejection64 dB at 50/60 Hz
Operating Temperature-40 to 75°C
Storage Temperature-40 to 75°C
Relative Humidity0 to 90% non-condensing
ConnectionsRemovable screw terminals accept 12 to 22 AWG
Tightening TorqueScrew terminal connectors: 4.5 lb-in (0.5 Nm)

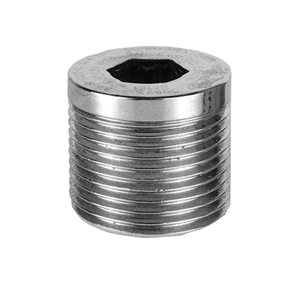

EnclosureExplosion-proof cast aluminum with glass window, 0.30% max copper content, corrosion resistant powder coating, color: blue. NEMA 4X, IP68. Two ½" NPT threaded conduit openings. One ½" NPT nickel plated brass conduit plug with 10 mm hex key fitting installed.
MountingMay be mounted directly to conduit. Two mounting holes for 1.5" pipe or wall mounting.
Weight40 oz (1.13 kg)
Overall Dimensions (W x H x D)4.30" x 4.27" x 3.62" (109 mm x 108 mm x 92 mm)
Warranty3 years parts & labor
  • Thumbnail of document Data Sheet - PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter
    Download

    Data Sheet - PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter

    Download
  • Thumbnail of document Manual - PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter
    Download

    Manual - PD663 ProtEX-Lite Explosion-Proof Loop-Powered Meter

    Download

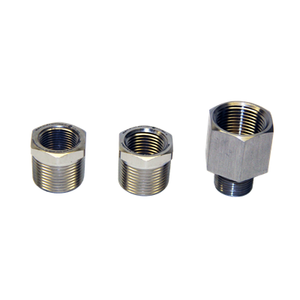

Accessories
