PD6830X ProtEX-MFI Explosion-Proof Modbus Scanner

Name: PD6830X ProtEX-MFI Explosion-Proof Modbus Scanner
SKU: placeholder-pd6830x-protex-mfi-explosion-proof-modbus-scanner
Price: 1782.00 CAD
Availability: InStock

RS485 serial input Modbus® RTU scanner, scans up to 16 Modbus variables and displays them on an easy-to-read, dual-line, LCD display

Starting at

$1,782.00CAD

Have questions? We're here to help!

Call

Configure

Used in

PD6830 X Prot EX MFI Explosion Proof Modbus Scanner 00746

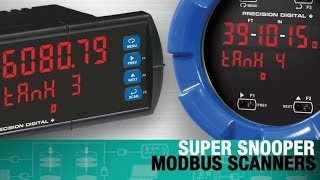

The explosion-proof ProtEX-MS2 and ProtEX-MFI Super Snoopers are serial input RS-485 Modbus® RTU scanners. These Modbus devices are ideal for hazardous areas or safe areas in need of a rugged solution. The ProtEX-MS2 has a two-line decimal display. The ProtEX-MFI top line displays level in feet and inches up to 399 ft, 11 and 15/16 inches. It includes a 20 segment tank level indicator.

Each scanner can accept up to 16 Modbus process variables (PVs), from up to 16 devices. The scanners automatically cycle through the PVs, with the ability to manually cycle PVs or pause scanning.

Up to four math channels (CV1-CV4) may be used to perform math functions on any of the input variables. Math functions include sum, difference, weighted average, ratio and more. Nested math functions may be used in these math equations, allowing for complex math functions.

The display is programmable to show any input, math channel, units, or tags, on a variety of display combinations between the top and bottom displays.

Standard features include SafeTouch through-glass buttons for operating the scanner without removing the cover, a backlight that makes the display mode visible in any lighting condition, 511 points of input data logging, and two open collector pulse or alarm outputs. A 4-20 mA output is available as an option.

The enclosure is provided with three threaded conduit holes and integrated pipe or wall mounting flanges. One conduit plug is installed, and included in the explosion-proof approvals.

Free, PC-based, ScanView EX software that connects to the scanner via the PDA8068, PDA7485-I, or the PDA8485-I is available for programming and setup of the instrument.

The instrument can also be programmed using the four SafeTouch through-glass buttons, without removing the cover, or with four internal push-buttons.

The PD6830X includes on-board data logging of up to 511 points.

• Fully-Approved Explosion-Proof Modbus Scanners

• Modbus Master, Slave, or Snooper Mode

• 0.4" (10.2 mm) 7 Alphanumeric Characters Lower Display for Process Variables, Custom Units, and Tags

• 5-Digit Decimal Display (ProtEX-MS2) or Feet & Inches Display (ProtEX-MFI)

• Display Mountable at 0°, 90°, 180°, & 270°

• SafeTouch Through-Glass Button Programming

• Scan up to 16 Modbus Process Variables

• Independent Scaling, Tag, and Unit for Each PV

• Backlight Standard on All Models

• Isolated 4-20 mA Output Option

• Two Isolated Pulse Outputs Standard, Up to 5 kHz

• Operating Temperature Range: -40 to 75°C (-40 to 167°F)

• FM Approved as Explosion-Proof / Dust-Ignition Proof / Flame-Proof

• CSA Certified as Explosion-Proof / Dust-Ignition Proof / Flame-Proof

• ATEX and IECEx Certified as Flame-Proof and Protection by Enclosure

• Conformal Coated PCBs for Dust and Humidity Protection

• Password Protection

• Data Logging Functions and Modbus Accessible Data

• Free ScanView EX Programming Software

• On-Board Three-Wire Isolated RS-485 with Modbus RTU

• Wide Viewing Angle

• Flanges for Wall or Pipe Mounting

• Explosion-Proof, IP68, NEMA 4X Enclosure

• Three 3/4" NPT Threaded Conduit Openings (One Plug Installed)

• 2" U-Bolt Kits Available

• Stainless Steel Tag Available

• 3-Year Warranty

Decimal Display	Top:Top Display: Five Digits (0 to 99999), 0.7" (17.8 mm) high, 7-segment, automatic lead zero blanking. Bottom Display: Seven Characters, 0.4" (10.2 mm) high, 14-segment, automatic lead zero blanking. Symbols: Total, grand total, high alarm, low alarm, SafeTouch button sleep mode/disable, password lock.
Feet & Inches Display	Top Display: 0.60" (15.2 mm) high, 0 to 399FT, 1115/16 IN, 7-segment, programmable 1/16 or 1/8 fraction display. Bottom Display: Seven Characters, 0.4" (10.2 mm) high, 14-segment, 7-digits. Tank Level Indicator : 20-segments, F (Full) and E (Empty). Alarm Indication: High and low alarm Backlight: White
Display Assignment	Top and Bottom Display: Process Variables (PV); Alternating PV and Units, Tag and PV, or Tag, PV, and Units; Pulse Input Rate, Total, or Grand Total with Alternating Tag. Bottom Display: All Top Display Options or Off Units and tag independent for each PV, pulse input rate, total, and grand total. Note: On feet and inches display models, top display used only for level Modbus process variables or math channels.
Backlight	White LED, 10 sec auto-off when battery powered. Backlight deactivated below temperature ≈ -20°C
Alarm Indication	Flashing display plus HI/LO (alarm) or SET indicators.
Scan and Update Rate	Ambient > -20°C: Modbus PV scan rate programmable from 2 to 99 seconds per PV. Tag and units programmable for 1 to 5 second alternation. Pulse input variables update 1/second. Rate update is dependent on gate settings. Ambient < -20°C: All Modbus scan, alternating units and tags, and pulse input variables update/10 seconds minimum.
Over Range	Upper Display: Decimal display flashes 99999 Level display flashes to 399FT 1115/16 IN Lower Display: Flashes 9999999
Under Range	Upper Display: Decimal display flashes -9999 Level display flashes to 399FT 1115/16 IN Lower Display: Flashes -999999
Programming Method	Four SafeTouch through-glass buttons when cover is installed. Four internal push buttons when cover is removed.
Recalibration	Calibrated at the factory to read frequency in Hz. No recalibration required.
Password Menu Options	Three programmable password selections can be used for the following: restrict modification of settings, prevent resetting the total or grand total without the password, or permanently lock out the ability to change or reset the grand total or any grand total related settings(making a non-resettable grand total). Pass: Restricts modifications of programmed settings to require re-entering the password to make changes. Pass T: Restricts the reset of total to require re-entering the password. Disables the manual mode reset contact. Pass GT: Restricts the reset of grand total to require re-entering the password. May enable a non-resettable grand total and permanent lockout of grand total-related settings with a specific password
Input Power	9-30 VDC, 38 mA max. 2.2 W
Data Logging	Up to 512 records, recorded 4/day at specific times or at defined time intervals. Record contains first eight enabled Modbus PVs; C1-4 if enabled; date; time; pulse rate, total, and grand total with units; and log number.
Isolation	All Models: 500 V opto-isolated pulse input-to-power/OC output with isolated input enabled, 500 V input/power-to-RS-485 serial communications. AXA Models: 500 V input/power-to-analog output.
Environmental	Operating temperature range: -40 to 75°C; Storage temperature range: -40 to 75°C; Backlight deactivated below temperatures ≈ -20°C; Relative humidity: 0 to 90% non-condensing
Non-Volatile Memory	All programmed settings and total reading are stored in non-volatile memory for a minimum of ten years if power is lost.
Connections	Screw terminals accept 12 to 22 AWG wire
Enclosure	Explosion-proof die-cast aluminum with glass window, corrosion resistant epoxy coating, color: blue. NEMA 4X, 7, & 9, IP68. Copper-free (0.3%). Default conduit connections: Three ¾" NPT threaded conduit openings. One ¾" NPT metal plug with 12 mm hex key fitting installed. Additional conduit opening configurations and plugs may be available; verify quantity and sizes on specific device labeling during installation.
Mounting	May be mounted directly to conduit. Two slotted flanges for wall mounting or NPS 1½" to 2½" or DN 40 to 65 mm pipe mounting.
Display Orientation	Display may be mounted at 90° increments up to 270° from default orientation.
Overall Dimensions (W x H x D)	5.67" x 5.24" x 4.88" (144 mm x 133 mm x 124 mm)
Weight	5.00 lbs (80 oz, 2.27 kg)
Warranty	3 years parts and labor
