Precision Digital

PD9502

Low-cost, compact, simple to use 4-20 mA or 0-10 VDC signal generator

Buy now!
$165.00CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
PD9502 05382

The PD9502 is a low-cost, compact, simple to use 4-20 mA or 0-10 VDC signal generator. It can easily be set for 0-20 mA, 4-20 mA, 0-10 V or 2-10 V ranges. Signal adjustment is made with a one-turn knob. A 15-27 VDC wall plug is provided with the instrument.

• 0-20 / 4-20 mA or 0-10 / 2-10 VDC Ranges
• Low-Cost
• Simple to Use
• Compact Size
• 4-Digit LED Display
• One-Turn Adjustment Knob
• +/- 0.5% +/- 1 Count Accuracy

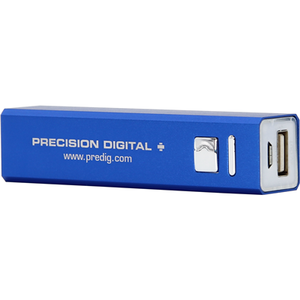

• Power 15-27 VDC or USB Power Pack

Display0.36" (9 mm) high red LED
Operating Temperature Range-4 to 140°F (-20 to 60°C)
ConnectionsRemovable screw terminal block
Output Ranges0-20 mA, 4-20 mA, 0-10 VDC, 2-10 VDC
Power Requirement15-27 VDC (wall plug provided)
Loop VoltageWhen powered by USB: 13.5V,
When powered by DC supply: 2 VDC less than the supply output
Output Load Impedance RequirementsVoltage-type ≥ 2KΩ, current-type ≤ 500Ω
Overall Dimensions2.0" x 3.3" x 0.9" (W x H x D) (85 mm x 50 mm x 22 mm)
Weight2.1 oz. (60 g)
Accuracy+/- 0.5% +/- 1 count

Accessories
