PLS2 Paddle Level Switch

Name: PLS2 Paddle Level Switch
SKU: placeholder-pls2-paddle-level-switch
Price: 615.98 CAD
Availability: InStock

An electromechanical level switch designed for level monitoring of bulk materials

Starting at

$615.98CAD

Have questions? We're here to help!

Call

Configure

Used in

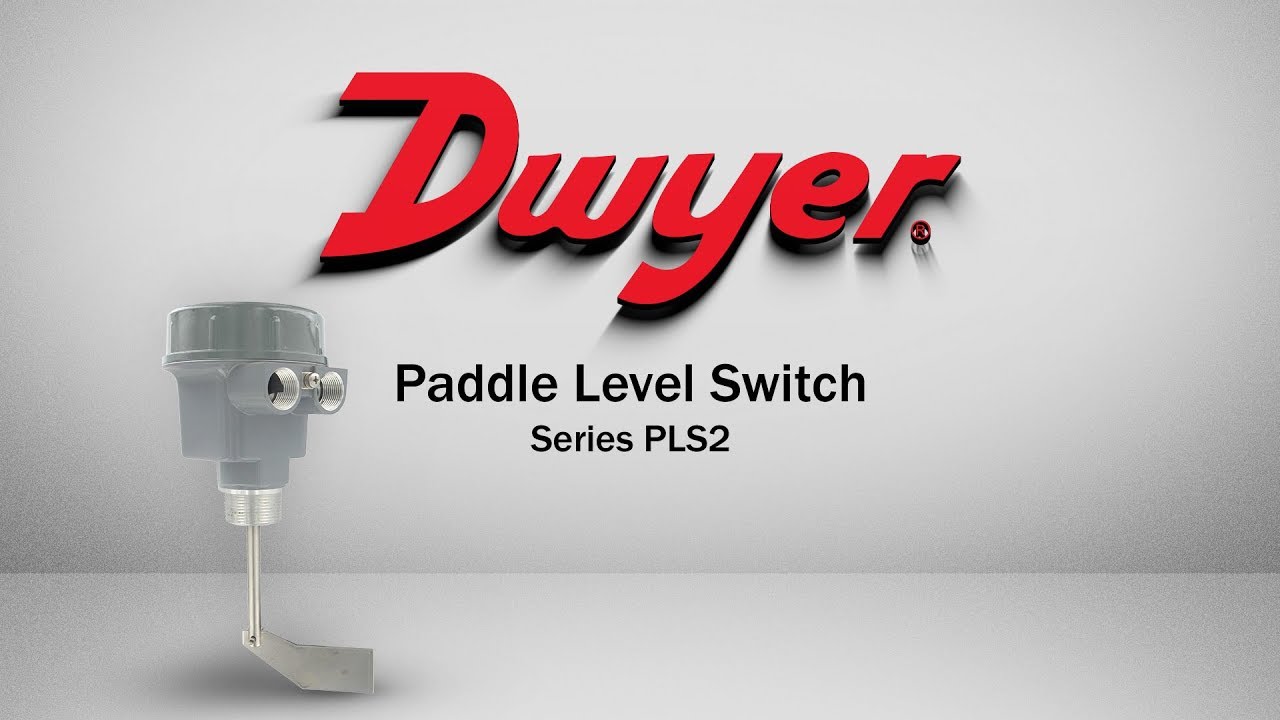

The Series PLS2 Paddle Level Switch is an electromechanical level switch designed for level monitoring of bulk materials. The rotating measuring vane is driven by a brushless synchronous motor at one revolution per minute and as product builds up, the paddle rotation is impeded and the resulting motor torque activates the output switch and stops the motor. The PLS2 is designed with the industry standard 1-1/4" male NPT connection and unit can be side or top mounted.

Service	Dry powder or bulk materials compatible with wetted materials.
Wetted Materials	Paddle: 304 SS; Exposed shaft: 303 SS; Shaft seal: NBR; Process connection: Aluminum.
Temperature Limits	Process: -13 to 176°F (-25 to 80°C); Ambient: -4 to 140°F (-20 to 60°C)
Pressure Limits	11.6 psi (0.8 bar).
Power Requirements:	Select by model number: 115 VAC, 230 VAC or 24 VDC.
Power Consumption:	AC versions: 4 VA; DC version: 2.5 watt.
Enclosure	Aluminum, powder coated.
Enclosure Rating	NEMA 4 (IP66); Rated for Class II & III, Div. 1, Group E, F, G.
Switch Type	SPDT micro switch.
Electrical Rating	5 A @ 250 VAC, 3 A @ 30 VDC.
Electric Connections	Screw terminals
Conduit Connection	3/4" female NPT.
Process Connection	1-1/4" male NPT.
Mounting Orientation	Side or top mounting.
Sensitivity	Minimum material density of 6 lb/ft3 (96 kg/m3).
Permitted Mechanical Loading	Standard shaft: 67 lbf (300 N) max; Optional extension: 22 lbf (100 N) max.
Weight	2.6 lb (1.2 kg).
Compliance:	CE, FM.
