Our PR-12 series probe with chemical-resistant cast iron protection head and screw-on cap includes PT100 Ω platinum RTD element or PT1000 RTD element, 1/2" NPT mounting threads and sheath of 316 stainless steel. When properly sized, these can go directly into and bottom out in a thermowell. All probes include a screw terminal block for easy connection of insulated copper extension wire. Using our probe configurator, replacement probes (without head assembly) are available as well as a "spring-loading" option which allows for the probe to bottom out in a thermowell for quicker and more accurate response. Applications for this probe include installation into large vessels and tanks, as well as large pipes for temperature monitoring.

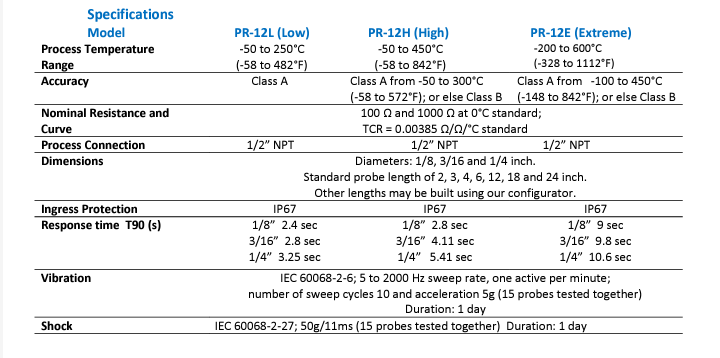

• Class A accuracy, conforming to IEC 60751
• Low temperature range: -50 to 250°C (-58 to 482°F)
• High temperature range: -50 to 450°C (-58 to 842°F)
• Extreme temperature range: -200 to 600°C (-328 to 1112°F)
• Standard probe lengths of 2, 3, 4, 6, 9, 12, 18, and 24”
• Resistance value: PT100 Ω or PT1000 Ω
• Cast iron head with screw-on cap
• Choice of PT100 and PT1000 Ω element
• IP67 Ingress Protection
