PR-13H Quick Disconnect RTD (PT100) Probes w/Standard Size Connector

RTD Probe with Standard Connector

Normally ships in
3-4 weeks
Have questions? We're here to help!
Have questions? We're here to help!

Supported Applications

The Omega PR-13 Series consists of Quick Disconnect RTD (Resistance Temperature Detector) probes featuring a heavy-duty, integral male connector. These assemblies are designed for liquid temperature measurement in containers or fixed installation within pipes, tanks, and vessels using optional compression fittings.

• Container insertion for liquid monitoring
• Pipe, tank, or vessel mounting with 'BRLK' or 'SSLK' compression fittings

Operating Conditions & Performance

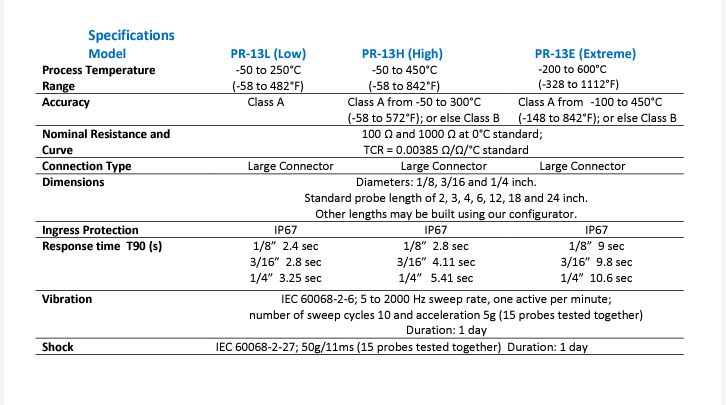

The series offers three distinct performance envelopes defined by model family: PR-13L (Low), PR-13H (High), and PR-13E (Extreme). All models utilize a standard TCR of 0.00385 Ω/Ω/°C with nominal resistances of 100 Ω or 1000 Ω at 0°C.

• PR-13L Process Temperature Range: -50 to 250°C (-58 to 482°F)
• PR-13H Process Temperature Range: -50 to 450°C (-58 to 842°F); Accuracy is Class A from -50 to 300°C (-58 to 572°F), or else Class B
• PR-13E Process Temperature Range: -200 to 600°C (-328 to 1112°F); Accuracy is Class A from -100 to 450°C (-148 to 842°F), or else Class B

The probes carry an IP67 ingress protection rating. Mechanical durability specifications include a vibration test per IEC 60068-2-6 (5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g) and shock resistance per IEC 60068-2-27 (50g/11ms).

Response Time by Diameter

• PR-13L: 1/8" diameter: 2.4 sec; 3/16" diameter: 2.8 sec; 1/4" diameter: 3.25 sec
• PR-13H: 1/8" diameter: 2.8 sec; 3/16" diameter: 4.11 sec; 1/4" diameter: 5.41 sec
• PR-13E: 1/8" diameter: 9 sec; 3/16" diameter: 9.8 sec; 1/4" diameter: 10.6 sec

Configuration Options

The PR-13 Series is configurable across probe diameters, lengths, resistance elements, and connection types to meet specific installation requirements.

• Diameters: Available in 1/8", 3/16", or 1/4"
• Standard Lengths: Probes are offered in standard lengths of 2, 3, 4, 6, 9, 12, 18, and 24 inch. Other lengths may be built using the configurator.
• Resistance Elements: PT100 or PT1000
• Connector Type: Large 3-prong Omega 'OTP' style connector (integral male; female sold separately)
• Process Connections: Optional 'BRLK' or 'SSLK' compression fittings for fixed mounting

Key Product Differences

The series is differentiated by the temperature range and accuracy class associated with each model prefix. The PR-13L designation covers low-range applications, while PR-13H supports higher temperatures up to 450°C (-58 to 842°F). The PR-13E variant extends capability for extreme conditions from -200 to 600°C (-328 to 1112°F).

• Model numbers follow the pattern: PR-13[L/H/E] - [Temperature Range Code] - [Resistance Element] - [Connector Type] - [Diameter] - [Length]

  • Standard male 3-prong connector (mating female sold separately)
  • Low temperature range: -50 to 250°C (-58 to 482°F)
  • High temperature range: -50 to 450°C (-58 to 842°F)
  • Extreme temperature range: -200 to 600°C (-328 to 1112°F)



AccuracyClass A
Electrical Connection3-Prong Standard Male Thermocouple Connector
Enclosure RatingsIP67
Nominal Resistance100 Ω
Nominal Resistance/Curve Note100 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard
Process Connection SizeN/A
RTD Type100 Ω Pt Sensor
Series IDPR-13
ShockIEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
Temperature Coefficient0.00385 Ω/Ω/°C
Temperature Coefficient Noteα = 0.00385 Ω/Ω/°C
Temperature Sensor TypeRTD
Thermocouple TypeN/A
VibrationIEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day
