Noshok

PTI20 Intelligent Pressure Transmitter

Compact, smart pressure transmitter for use in general industrial applications, featuring user-adjustable pressure ranges from vacuum through 1160psig

Starting at
$1,530.00CAD
Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Configure
Used in
PTI20 Intelligent Pressure Transmitter 12828
PTI20 Intelligent Pressure Transmitter 8acf2

 The NOSHOK PTI20 Series Intelligent Pressure Transmitter utilizes a piezoresistive silicon sensor for use in general industrial applications. When the PTI20's sensor element is put under pressure, it creates a deflection in the silicon substrate and bridge network. This generates a value that is converted into a pressure measurement within 0.2% accuracy, providing consistent, trustworthy readings in less than 100ms of change occurring.


The PTI20 features a compact but durable design, with a stainless steel flush diaphragm that reduces the fill fluid required, as well as the potential for damage when utilized in harsh environmental conditions. The design features easy-to-implement adjustments to all available ranges via a streamlined 3 button system on the PTI20's display, or through the optional HART output.

All NOSHOK PTI Series Transmitters come with a three year warranty.
• Pressure ranges: 5 to 1,160psig (adjustable from vacuum to full scale)
• Stability: <0.1% per year
• Accuracy: ±0.2% of adjusted span (4:1 turn down)
• Response time: <100ms
• Service life: 10+ years
• Temperature ranges:
• media -4 to 176°F (-20 to 80°C)
• ambient -4 to 158°F (-20 to 70°C)
• flange -4 to 212°F (-20 to 100°C)
• Output: 4 to 20 mA 2-wire (HART enabled option available)
• Power requirement: 12 to 36VDC
• Active temperature compensation
• Housing/Connection/Measuring Element Material: Stainless Steel
• Environmental rating: IP66
• RFI, EMI and ESD protections
• 3-year Warranty
• General industrial
• Pulp & paper
• Water & wastewater
• Power generation
• Food & beverage
  • Thumbnail of document Data Sheet - PTI20 Intelligent Pressure Transmitter
    Download

    Data Sheet - PTI20 Intelligent Pressure Transmitter

    Download

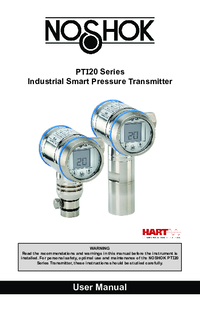

  • Thumbnail of document Manual - PTI20 Intelligent Pressure Transmitter
    Download

    Manual - PTI20 Intelligent Pressure Transmitter

    Download
