PX2650-10D5V Bidirectional, Differential Low Pressure Transducers

0 to 10 inH2O, Differential Pressure

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
PX2650 10 D5 V Bidirectional Differential Low Pressure Transducers 14169
• For Dry Gases
• Ranges from 0.25 inH2 O to 100 inH2 O
• For Use in Building Management, HVAC Ducts or Clean Rooms
• Works with Unregulated Voltage Source
Excitation9 to 30 Vdc unregulated
Output Impedance<100Ω
Output SpanSet to 5 Vdc ±50 mV
Zero OffsetSet to ±50 mV
Accuracy±1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)
Linearity±0.98% FS (typical)
Hysteresis0.1% FS (typical)
Repeatability±0.05% FS Compensated Temperature Range: -18 to 65°C (0 to 149°F)
Thermal Effects±0.06%/°C (#177;0.033%/°F)
Proof Pressure±10 psi, all ranges
Position EffectFactory calibration with diaphragm vertical
SensorCapactitive
MediaAir or similar non-conducting gases
Pressure Port3/16' OD pressure fitting for 1/4' tube
CaseFire-retardant glass-filled polyester
Mounting2 tabs with #8 holes
Electrical ConnectionScrew terminals
Weight85 g (3 oz)
  • Thumbnail of document Data Sheet - PX2650-10D5V Bidirectional, Differential Low Pressure Transducers
    Download

    Data Sheet - PX2650-10D5V Bidirectional, Differential Low Pressure Transducers

    Download

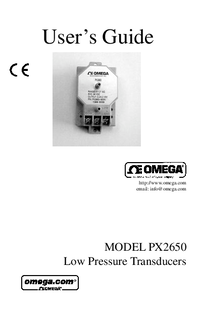

  • Thumbnail of document Manual - PX2650-10D5V Bidirectional, Differential Low Pressure Transducers
    Download

    Manual - PX2650-10D5V Bidirectional, Differential Low Pressure Transducers

    Download
