PX309-100Gi General Purpose, Stainless Steel Press. Transducers

0 to 100 psi, Gauge, 4 to 20 mA, Cable

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
PX309 100 Gi General Purpose Stainless Steel Press Transducers 14150

 OMEGA’s PX309 Series Stainless Steel Pressure transducers below 100 psi use a high accuracy silicon sensor protected by an oil-filled stainless steel diaphragm. Units 100 psi and above use silicon strain gages molecularly bonded to the stainless steel diaphragm.


We provide a complete range of services—from product inception, through design and prototypes, to manufacturing and testing. Our application engineers work closely with our customers to customize, design or create entirely new products. Call us—whether you’re an OEM, manufacturer, or end user.
• 1, 2 & 5 psi Low Pressure Ranges!
• All Stainless Steel Construction
• Gage, Absolute, Compound Gage or Vacuum Pressure
• Rugged Solid State Design
Common Specifications
Ranges-15 to 50 psig, 0 to 1000 psia, 100 to 10,000 psig
Accuracy (Combined Linearity, Hysteresis and Repeatability)±0.25% BSL, max
Minimum Resistance Between Transducer Body and Any Wire1M Ω @ 25 Vdc
CalibrationIn vertical direction with fitting down,positive outputs only
Pressure Cycles10 million, minimum
Pressure Overload-15 to 50 psig and 0 to 1000 psia: 3 times rated pressure or 20 psi whichever is greater, 100 to 10,000 psig: 2 times rated pressure
Burst Pressure-15 to 50 psig and 0 to 1000 psia: 4 times rated pressure or 25 psi whichever is greater, 100 to 10,000 psig: 5 times rated pressure
Long Term Stability (1 Year)±0.25% of FS, typical
Operating Temperature-40 to 85°C (-40 to 185°F)
Pressure Port¼-18 MNPT
Pressure Port Material-15 to 50 psig and 0 to 1000 psia: 316 SS, 100 to 10,000 psig: SS 316 or 17-4
0 to 500 psi: may contain HNBR o-ring in wetted pressure port assembly
BandwidthDC to 1 kHz (typical)
CECompliant
Shock50 g, 11 ms half-sine
Vibration±20 g
Response Time<1 millisecond
Weight
PC309154 g (5.4 oz)
PX319/329/359100 g (3.5 oz)
IP RatingIP65
PLEASE REFER TO 'SPECS' FOR ADDITIONAL SPECIFICATIONS FOR EACH OUTPUT (mV, 0 to 5 Vdc and 4 to 20 mA)
  • Thumbnail of document Data Sheet - PX309-100Gi General Purpose, Stainless Steel Press. Transducers
    Download

    Data Sheet - PX309-100Gi General Purpose, Stainless Steel Press. Transducers

    Download

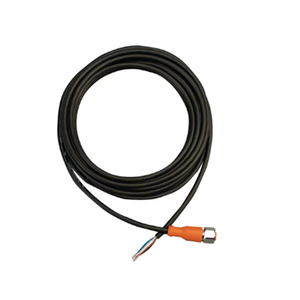

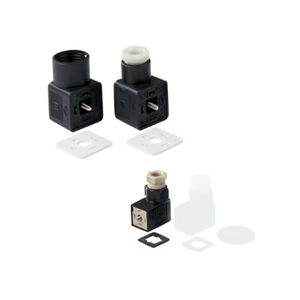

Accessories

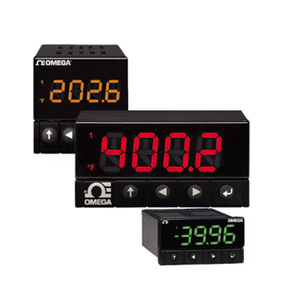

Digital Indicators / Panel Meters
