PX4200-100GI Silicon-on-Sapphire Pressure Transducers

0 to 100 psi, Gauge, 4 to 20 mA

Have questions? We're here to help!
Have questions? We're here to help!
Call
Email
Used in
PX4200 100 GI Silicon on Sapphire Pressure Transducers 14160

 OMEGA’s PX4201 Series Transmitters bring state-of-the-art Silicon-on-Sapphire (SOS) sensor technology to the industrial arena. SOS construction uses very stabile solid state silicon strain gages on a Sapphire carrier which is glass bonded to a titanium diaphragm. This combination provides a very durable transducer which has excellent stability over a wide temperature range. Additionally, the all titanium wetted parts provide maximum corrosion resistance to harsh industrial chemicals.


• Silicon on Sapphire Construction
• Titanium Wetted Parts for Media Compatibility
• 0.25% Accuracy
• 100 mV Bridge Output is Compatible with Most Strain Gage Instrumentation
Excitation10 Vdc @ 5 mA (15 Vdc max)
Output100 mV ratiometric
Bridge Resistance1500Ω ±30%
Accuracy±0.25% FS includes linearity, and hysteresis
Long Term Stability±0.2% (6 months)
Repeatability±0.1% FS
Long term Span Stability± 0.2% FS (1 year)
Media Temperature-50 to 120°C (-58 to 248°F)
Ambient Temperature-40 to 80°C (-40 to 175°F)
Thermal Zero Effect<±0.016% FS/°F
Thermal Span Effect<±0.016% FS/°F
Humidity95% RH non-cond.
Maximum Overpressure200% FS
SensorSilicon on Sapphire
Wetted PartsTitanium
Case MaterialStainless Steel, IP65
Pressure Port¼ NPT male
Electrical ConnectionDin 43650 Plug with Mating Connector Supplied
Response Time0.2 ms, 63%
Weight90 g (3.2 oz)
  • Thumbnail of document Data Sheet - PX4200-100GI Silicon-on-Sapphire Pressure Transducers
    Download

    Data Sheet - PX4200-100GI Silicon-on-Sapphire Pressure Transducers

    Download

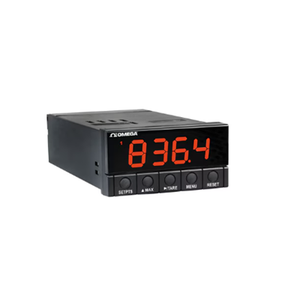

Digital Indicators / Panel Meters

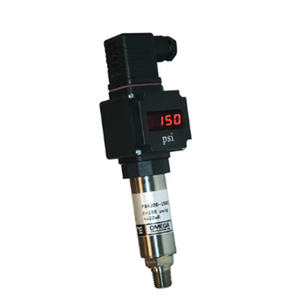

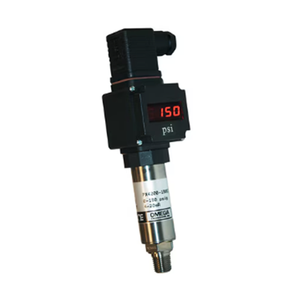

Accessories
